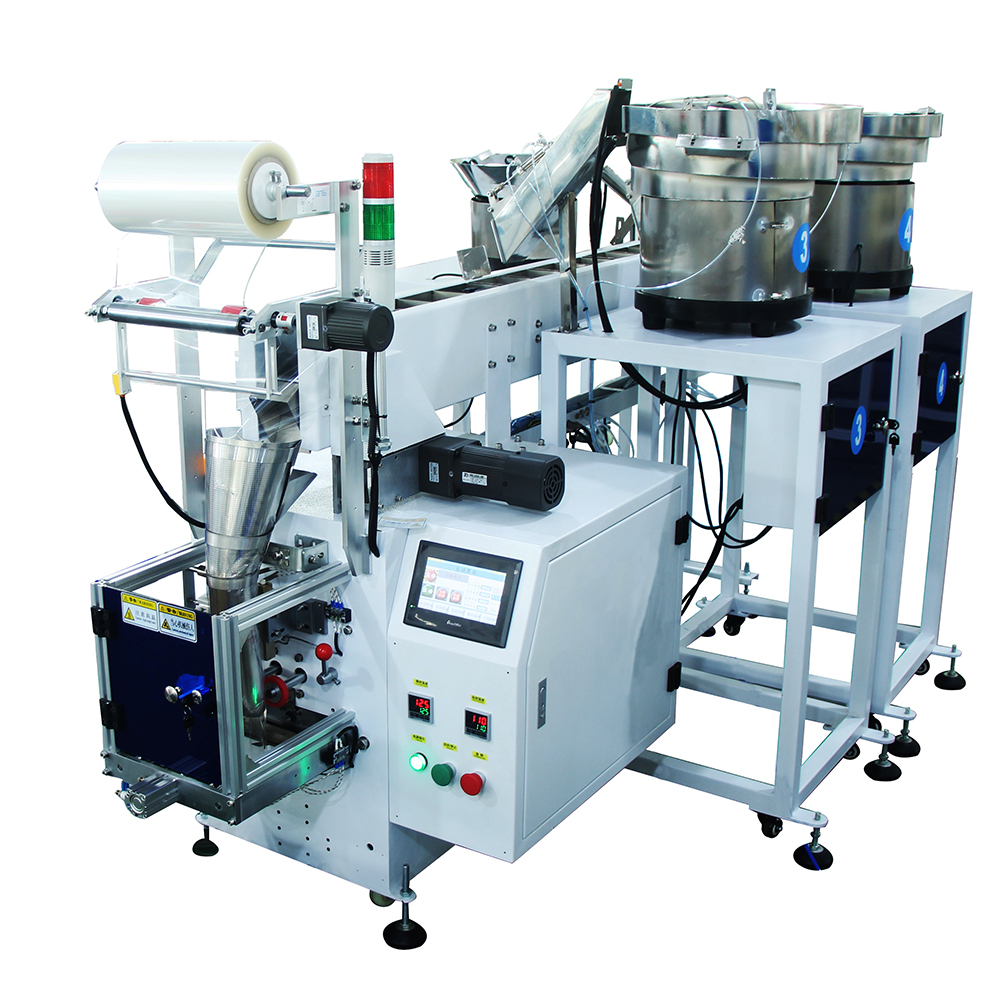

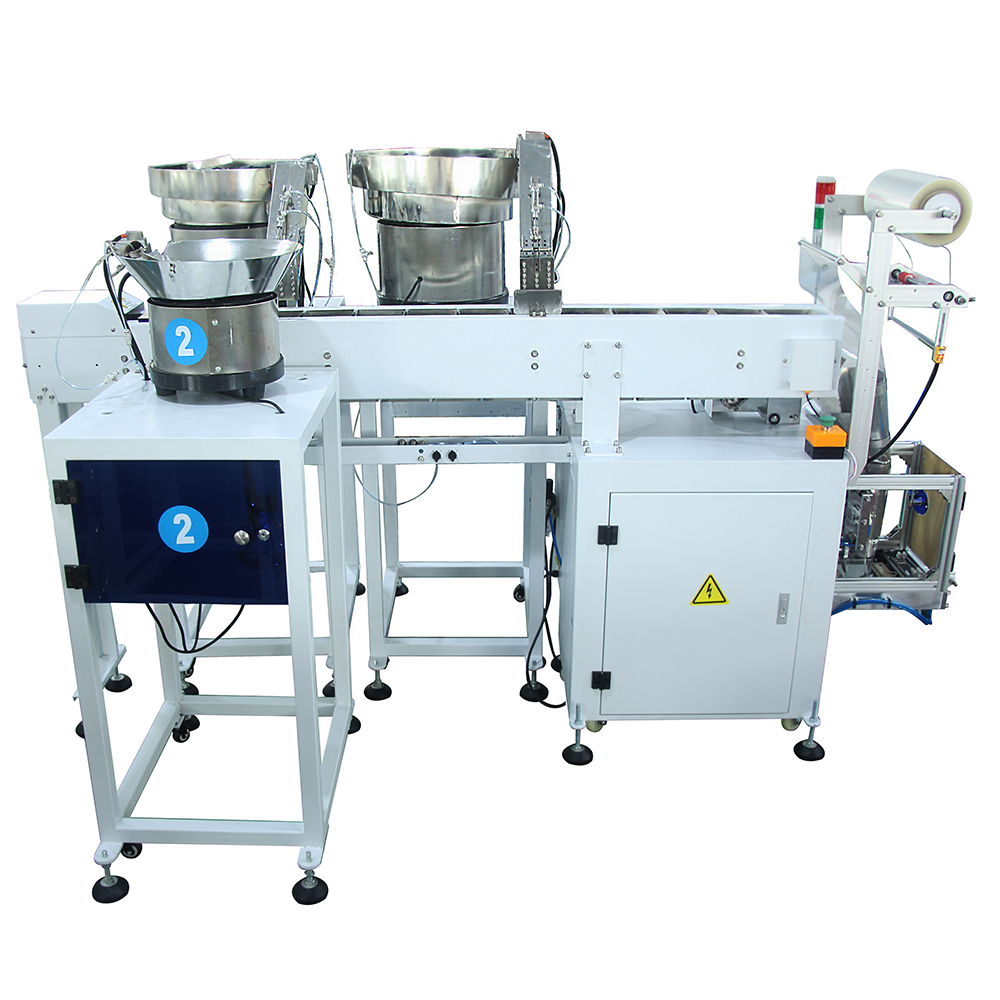

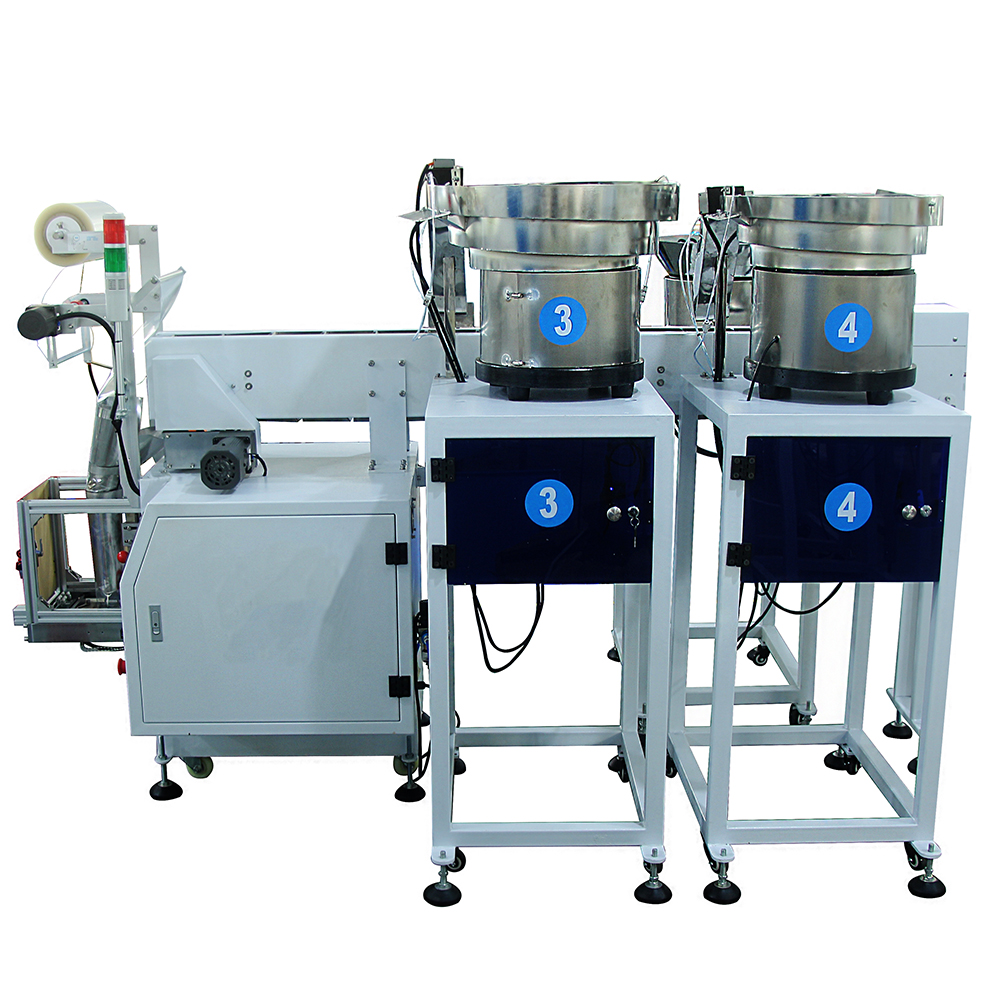

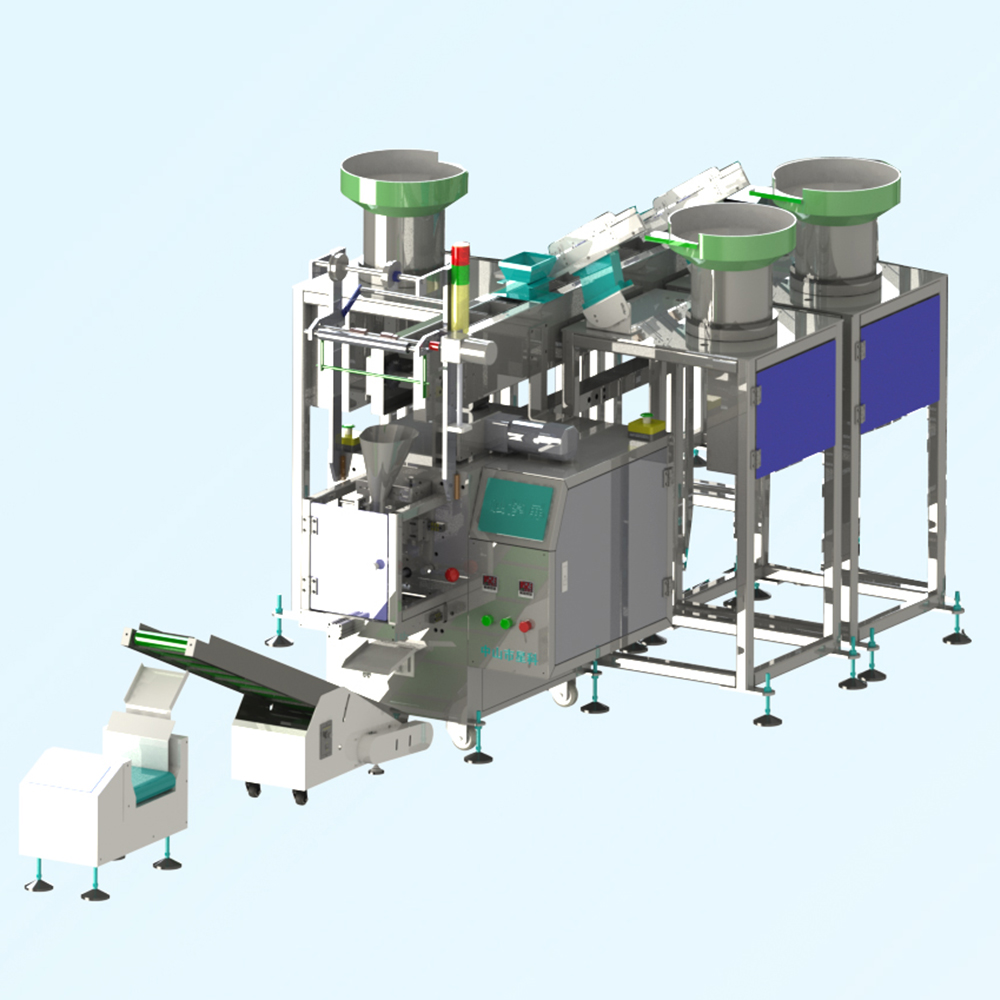

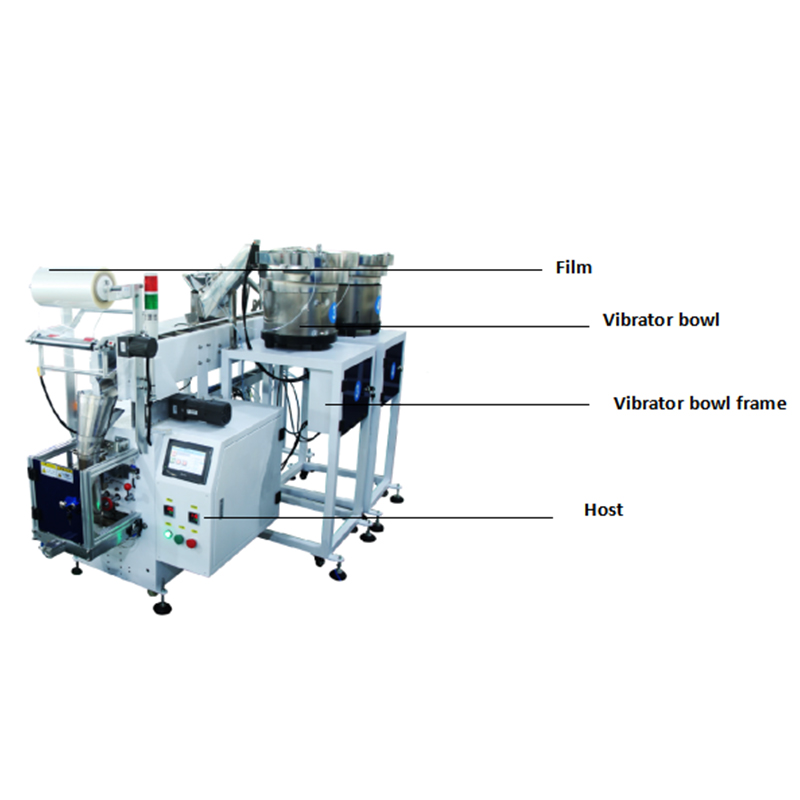

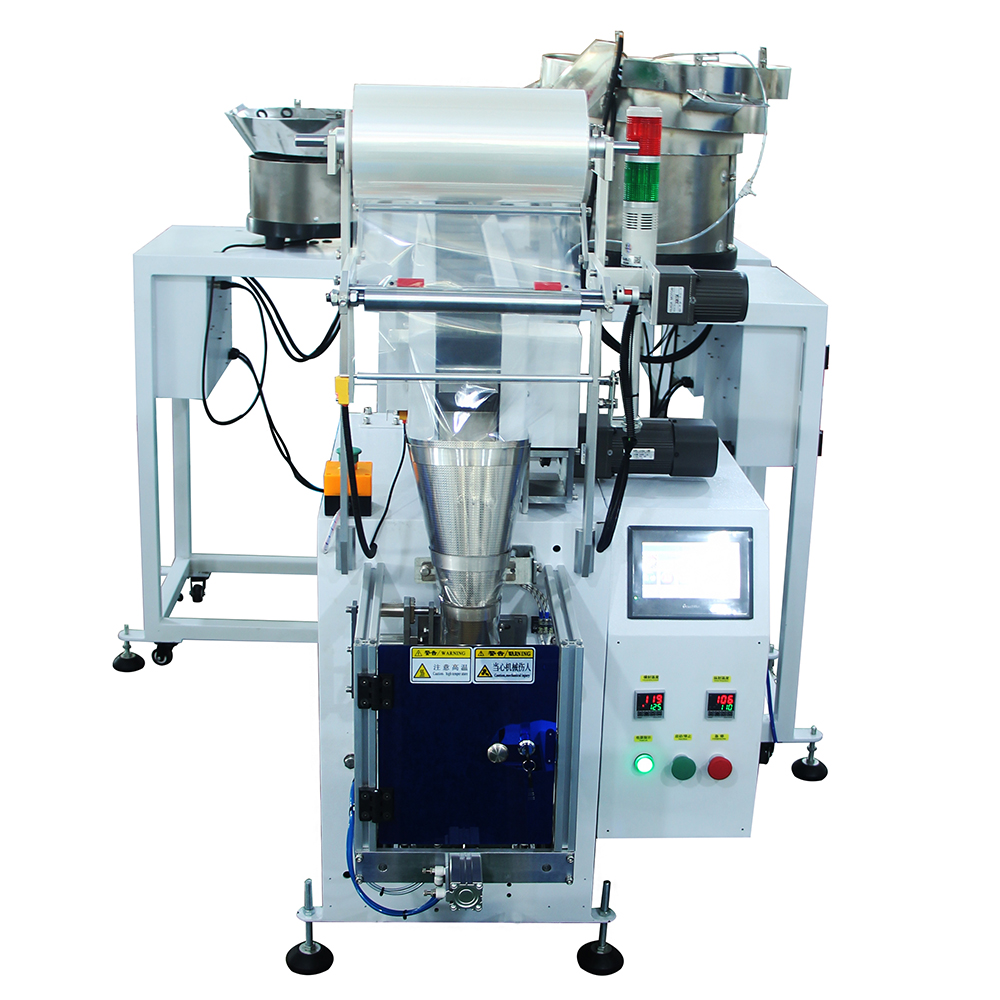

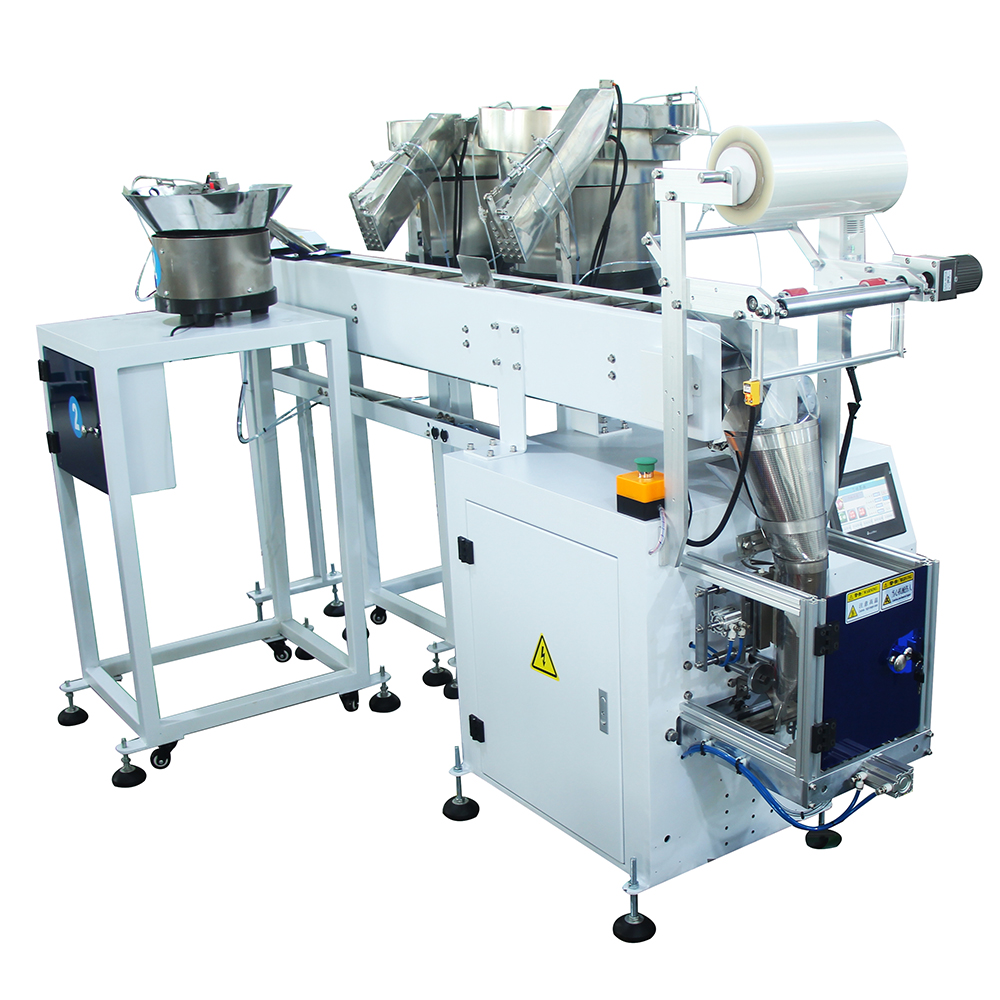

3 Kinds of Material Mixing Automatic Packaging Machine XK-B863T

XK-B863T (3 Kinds of Material Mixing Automatic Counting Bag Making and Filling Chain Bucket Packaging Machine).

1) Technical characteristics
1.Vibrator bowl automatically arranges materials, automatic counting, automatic filling, automatic packaging, sealing function, and output counting.
2. Adopt intelligent temperature control system, stable temperature control, temperature adjustable according to needs.
3. The length of the packaging bag is adjustable, the total number of packaging is adjustable, automatic alarm when the set number is reached.
4. After packaging, the bag shape is uniform, regular, beautiful, and firm. And expansion equipment such as coding machine, check weighing, labeling machine, hoist, etc. can also be added.
2) Scope of application and functional characteristics
1. This product is suitable for the separate packaging of automatic mixed goods of 3 or less materials, such as screws, nuts, flat washers, spring washers, toys, standard parts, etc. This product uses a chain bucket to drive the material box to rotate, and the vibrator bowl automatically counts materials put the product in the material box, the chain bucket will fill the product into the automatic packaging of the forming machine, or use the free space of the equipment to manually put other materials in mixed packaging.
2. Suitable for "OPP/CPP/lamination film" as a sealing material.

SEND INQUIRY NOW

Product Details

Product Parameters

Equipment model: XK-B863T

Counting method: Fiber counting/blocking and putting

Bag size: Width 40-140 length within 200 (normal 140)

Packing speed: 1-60 bags/min

Sealing shape: Stripes, back seal/three-side seal (conventional back seal)

Voltage power: 220V/50Hz P≈1.5KW

Air supply: 0.4-0.8Mpa

Bag mouth shape: Pattern knife tooth type

Dimensions: Length 2350mm/width 1500mm/height 1550mm

Weight: About 350KG

Basic Information

Year Established

--
Business Type

--
Country / Region

--
Main Industry

--
Main Products

--
Enterprise Legal Person

--
Total Employees

--
Annual Output Value

--
Export Market

--
Cooperated Customers

--

Lamination Film Packaging Machine Semi-Automatic CPP/OPP/PE XK-B860X

1) Technical characteristics1. Automatic filling, automatic packaging, sealing function, output counting.2. Adopt intelligent temperature control system, stable temperature control, temperature adjustable according to needs.3. The length of the packaging bag is adjustable, the total number of packaging is adjustable, and the alarm is automatically triggered when the set number is reached.4. After packaging, the bag shape is uniform, regular, beautiful, and firm. And expansion equipment such as coding machine, check weighing, labeling machine, hoist, etc. can also be added.2) Scope of application and functional characteristics1. This product is suitable for products with long, irregular product shapes, large length and width ratios. And suitable for products that have extremely high surface requirements such as electroplating, spray painting, paint and other process treatments, such as electroplated process plastic products, toys, bolts, screwdrivers, data cables, etc., are manually put in materials. And the belt conveys the materials to the forming machine, and automatically fills the packaging.2. Suitable for "OPP/CPP/lamination film" as a sealing material.
Automatic Counting Coding Screw Packaging Machine XK-B861

1) Technical characteristics1. Vibrator bowl automatically arranges materials, automatic counting, automatic filling, automatic packaging, sealing function, and output counting.2. Adopt intelligent temperature control system, stable temperature control, temperature adjustable according to needs.3. The length of the packaging bag is adjustable, the total number of packaging is adjustable. Automatic alarm when the set number is reached.4. After packaging, the bag shape is uniform, regular, beautiful, and firm. And expansion equipment such as coding machine, check weighing, labeling machine, hoist, etc. can also be added.2) Scope of application and functional characteristics1. This product is suitable for automatic packaging of single materials, such as screws, nuts, flat washers, spring washers, toys, standard parts, etc. After the vibrator bowl is automatically counted, the product is filled into the automatic packaging of the former, and the spare equipment can also be used space artificially puts other materials in mixed packaging.2. Suitable for "OPP/CPP/lamination film" as a sealing material.
Automatic Single Vibrator Bowl Screw Packaging Machine XK-B861

1) Technical characteristics1. Vibrator bowl automatically arranges materials, automatic counting, automatic filling, automatic packaging, sealing function, and output counting.2. Adopt intelligent temperature control system, stable temperature control, temperature adjustable according to needs.3. The length of the packaging bag is adjustable, the total number of packaging is adjustable. Automatically alarm when the set number is reached.4. After packaging, the bag shape is uniform, regular, beautiful, and firm. And expansion equipment such as coding machine, check weighing, labeling machine, hoist, etc. can also be added.2) Scope of application and functional characteristics1. This product is suitable for automatic packaging of single materials, such as screws, nuts, flat washers, spring washers, toys, standard parts, etc. After the vibrator bowl is automatically counted, the product is filled into the automatic packaging of the forming machine, and the spare equipment can also be used space artificially puts other materials in mixed packaging.2. Suitable for "OPP/CPP/lamination film" as a sealing material.
Double Vibrator Automatic Packaging Machine XK-B862P

1) Technical characteristics1. Vibrator bowl automatically arranges materials, automatic counting, automatic filling, automatic packaging, sealing function, and output counting.2. Adopt intelligent temperature control system, stable temperature control, temperature adjustable according to needs.3. The length of the packaging bag is adjustable, the total number of packaging is adjustable. Automatic alarm when the set number is reached.4. After packaging, the bag shape is uniform, regular, beautiful, and firm. And expansion equipment such as coding machine, check weighing, labeling machine, hoist, etc. can also be added.2) Scope of application and functional characteristics1. This product is suitable for automatic mixing or separate packaging of two materials, such as toys, casters, plastic parts, standard parts, etc. After the vibrator bowl is automatically counted, the belt is conveyed to fill the product into the automatic packaging of the forming machine. It is also possible to use the spare space of the equipment to manually put other materials in mixed packaging.2. Suitable for "OPP/CPP/PE lamination film" as a sealing material.
