VR
  • Product Details

1) Technical characteristics

1.Vibrator bowl automatic arrangement of materials, automatic counting, automatic filling, automatic packing, sealing function, output count.

2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.

3. The length of packaging bag and the total number of packaging are adjustable, automatic alarm when the set number is reached.

4. After packing, the bag is uniform and firm. About the machine, it can also be equipped with coding machine, check weighting, labeling machine, conveyor and other expansion equipment.



2)Scope of application and functional features

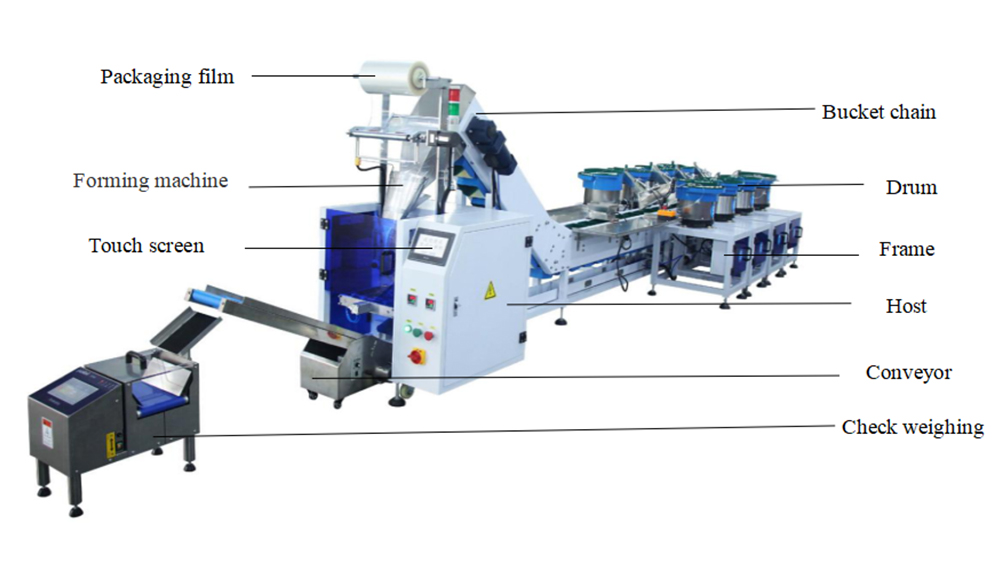

1. This product is suitable for a variety of automatic counting material put in mix or separate packaging, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc.. This product uses a chain bucket climbing type to drive the material box to rotate, artificial material delivery to box, automatically packaging products fill the bucket to molding machine. This product uses climbing way reduces the height of trailers more than 8 drums work stations can be added after the bucket, which can continue more specifications of material mixing and automatic packaging, and can also use the spare space for manual putting.

2. It is suitable for "OPP/CPP/ lamination film" as sealing material.


Product Parameters


Equipment Model: XK-B870Z

Counting Method: Optical fiber counting/blocking and putting

Bag Size: Width 40-140,  length less than 200 (usually 140)

Packing Speed: 1-60 bags/min

Sealing Shape: Stripe/back seal/3 sides seal (usually back seal)

Voltage Power: 220V/50HZ  P≈3KW

Air Supply: 0.4-0.8MPA

Bag Mouth Shape: Figure cutter tooth shape

Dimensions: Length 3200mm/ width 2100mm/ height 1650mm

Weight: About 800KG
