Screw&nut Counting Packaging Machine

HOME > PRODUCTS > Vertical Packaging Machine > Screw&nut Counting Packaging Machine

Recommended

Replay

Recommended

Lamination Film Packaging Machine Semi-Automatic CPP/OPP/PE XK-B860X

Automatic Counting Coding Screw Packaging Machine XK-B861

Automatic Single Vibrator Bowl Screw Packaging Machine XK-B861

Double Vibrator Automatic Packaging Machine XK-B862P

High Quality XK-B8610T 10 vibrating bowl Wholesale - Zhongshan Xingke Automation Equipment Co., Ltd.

Name: High Quality XK-B8610T 10 vibrating bowl Wholesale - Zhongshan Xingke Automation Equipment Co., Ltd.
Uploaded: 2023-11-27T09:46:11+08:00
Duration: 41 s

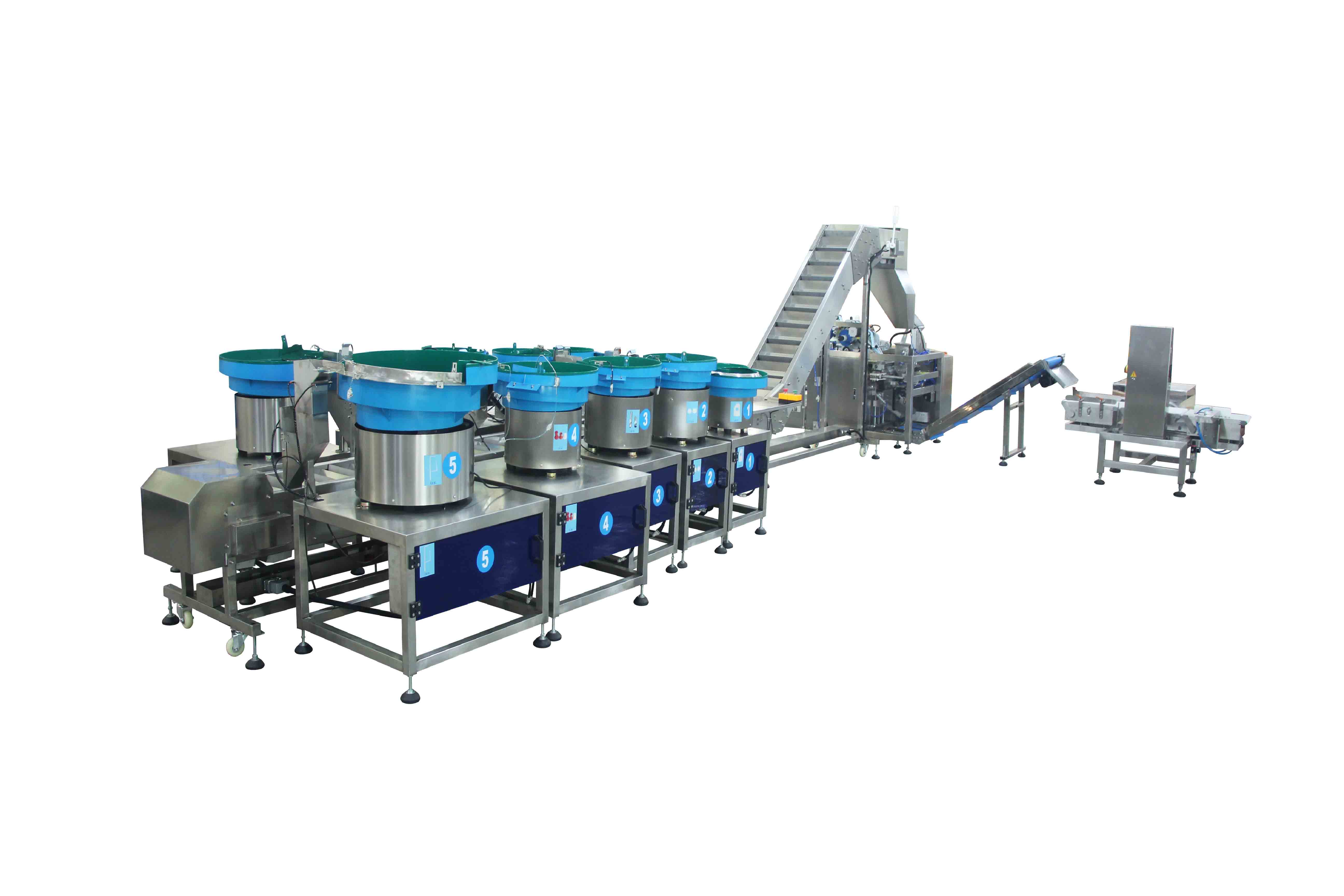

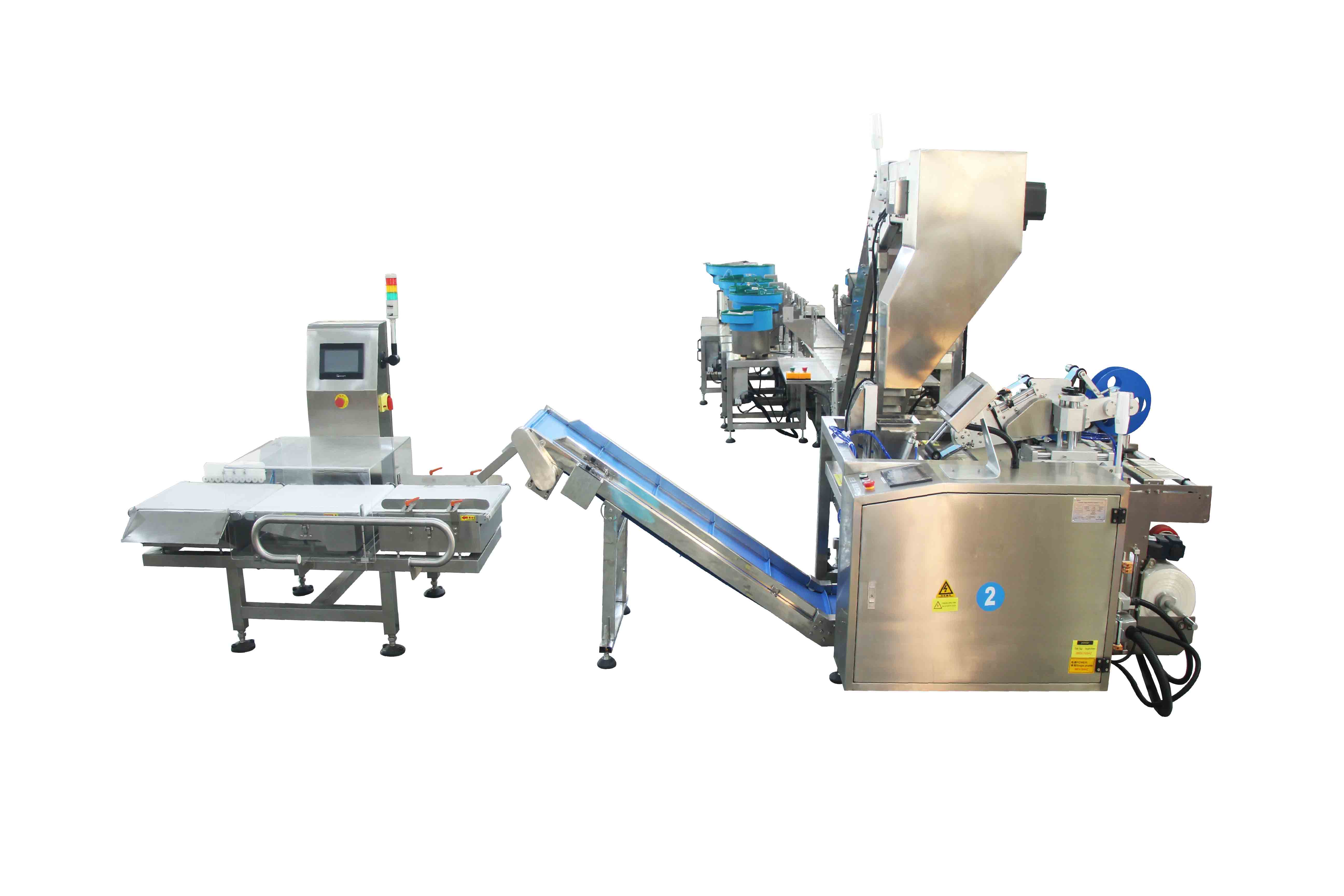

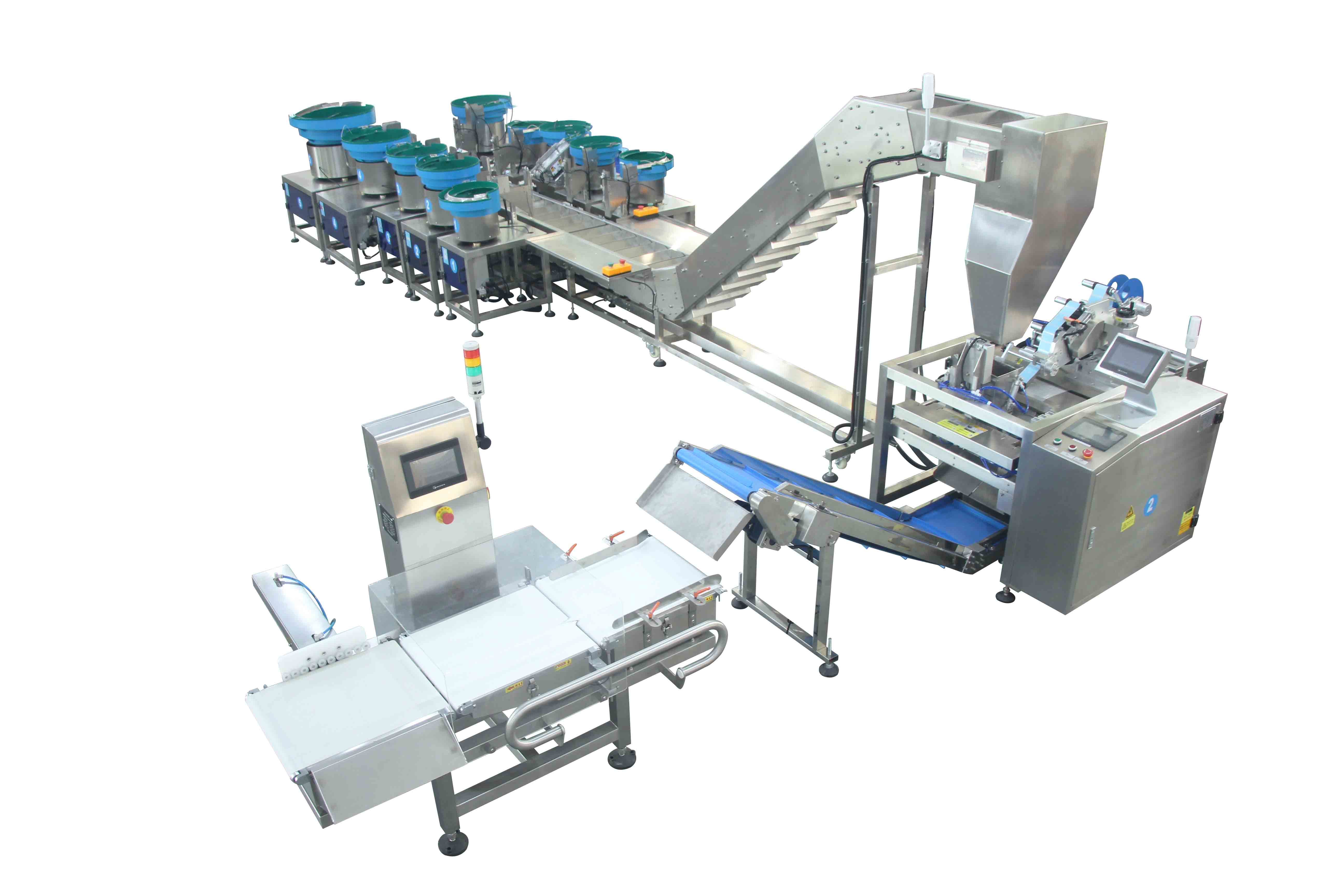

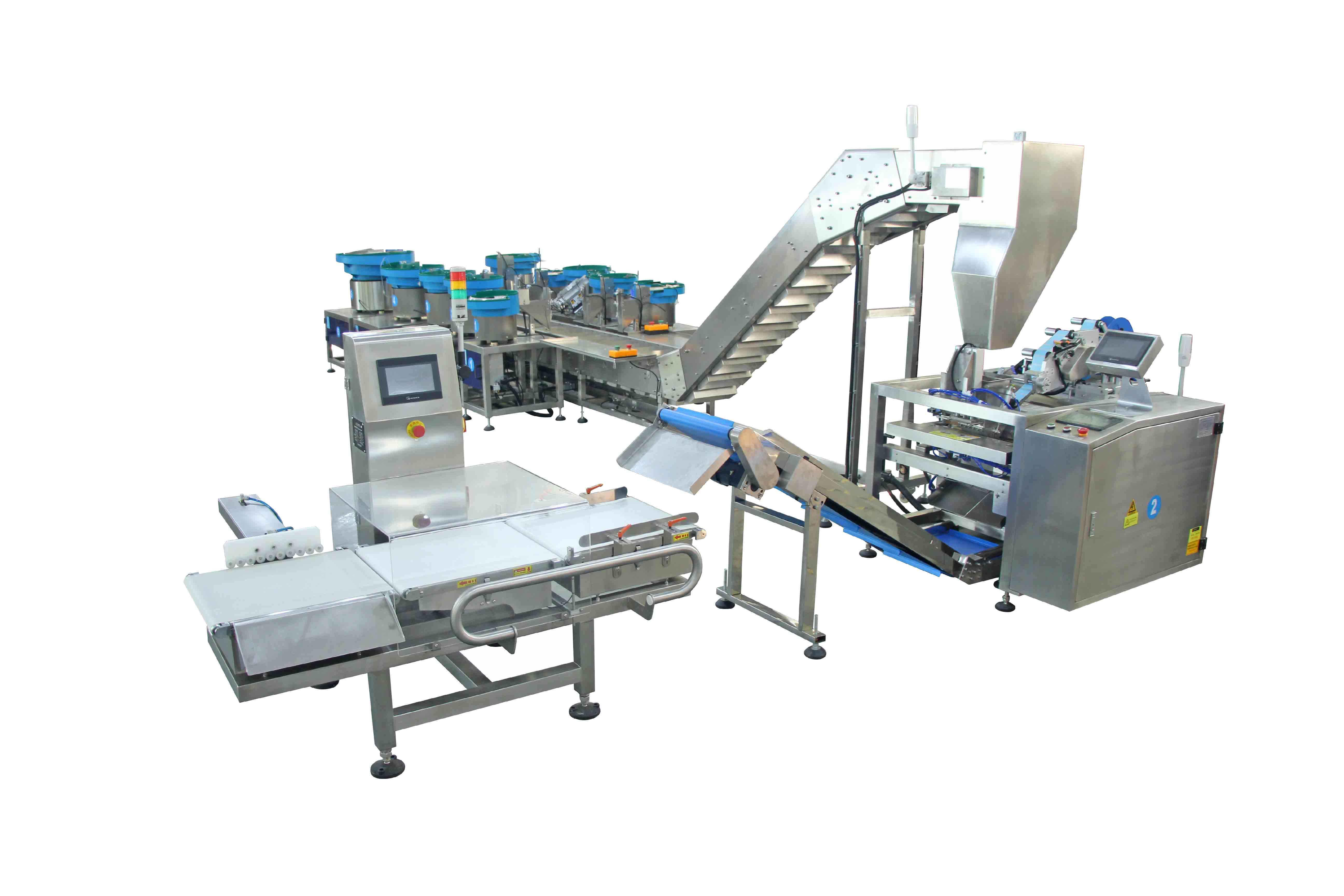

Description: This machine is customized for customers from Turkey. It is used to package bathroom furniture accessories. Due to the large number of packages and the large size of the parts, the tube film machine replaces the conventional main machine. The bag width can reach 300mm.

This machine is customized for customers from Turkey. It is used to package bathroom furniture accessories. Due to the large number of packages and the large size of the parts, the tube film machine replaces the conventional main machine. The bag width can reach 300mm.

SEND INQUIRY NOW

Product Details

Company Introduction

Xingke is the sole proprietor of Zhongshan Xingke Automation Equipment Co., Ltd.. We are an ISO 9001 certified company Pioneer in manufacturing of Packaging Machine at a larger range in China, with strict attention to quality standards for defect free products, high durability and its robust construction. The complete range of products are thoroughly checked and tested to threshold levels to ascertain its reliability.

Product Introductio

Equipment mode	XK-B8610T	Counting method	fiber counting/stopping and discharging
Bag siz	width 100-400 within 450 length	Packing speed	1-60 bags/min
Seal shap	cylinder membrane sealing	Voltage power	380V/50Hz P≈4KW
Air source requirement	0.4-0.8MPA	Bag mouth shap	figure cutter tooth shape
Dimensions	length 7940mm/width 4450mm/height 1900mm	Weight	about 700KG

Product details

part.1

The vibration plate can be replaced with materials as needed and the quantity can be set as needed.

part.2

Dual-cylinder longitudinal sealing system makes bag sealing more stable

part.3

Parameter setting is easier with the 7-inch touch screen

part.4

The horizontal sealing part adopts stainless steel protective cover; beautiful and safe

part.5

Adopting China's top ten electrical appliance brands: Xinjie PLC control system

part.6

Light blue safety door

Call or visit us.

No. 11, South Qimin Road, Huoju Development Zone, Zhongshan, Guangdong, China.

Surname

Nicole
Company Name

Zhongshan Xingke Automation Equipment Co., Ltd.
E-mail

caoningjing@xingkepacking.com
TEL

+8613326999249

Basic Information

Year Established

--
Business Type

--
Country / Region

--
Main Industry

--
Main Products

--
Enterprise Legal Person

--
Total Employees

--
Annual Output Value

--
Export Market

--
Cooperated Customers

--

Lamination Film Packaging Machine Semi-Automatic CPP/OPP/PE XK-B860X

1) Technical characteristics1. Automatic filling, automatic packaging, sealing function, output counting.2. Adopt intelligent temperature control system, stable temperature control, temperature adjustable according to needs.3. The length of the packaging bag is adjustable, the total number of packaging is adjustable, and the alarm is automatically triggered when the set number is reached.4. After packaging, the bag shape is uniform, regular, beautiful, and firm. And expansion equipment such as coding machine, check weighing, labeling machine, hoist, etc. can also be added.2) Scope of application and functional characteristics1. This product is suitable for products with long, irregular product shapes, large length and width ratios. And suitable for products that have extremely high surface requirements such as electroplating, spray painting, paint and other process treatments, such as electroplated process plastic products, toys, bolts, screwdrivers, data cables, etc., are manually put in materials. And the belt conveys the materials to the forming machine, and automatically fills the packaging.2. Suitable for "OPP/CPP/lamination film" as a sealing material.
Automatic Counting Coding Screw Packaging Machine XK-B861

1) Technical characteristics1. Vibrator bowl automatically arranges materials, automatic counting, automatic filling, automatic packaging, sealing function, and output counting.2. Adopt intelligent temperature control system, stable temperature control, temperature adjustable according to needs.3. The length of the packaging bag is adjustable, the total number of packaging is adjustable. Automatic alarm when the set number is reached.4. After packaging, the bag shape is uniform, regular, beautiful, and firm. And expansion equipment such as coding machine, check weighing, labeling machine, hoist, etc. can also be added.2) Scope of application and functional characteristics1. This product is suitable for automatic packaging of single materials, such as screws, nuts, flat washers, spring washers, toys, standard parts, etc. After the vibrator bowl is automatically counted, the product is filled into the automatic packaging of the former, and the spare equipment can also be used space artificially puts other materials in mixed packaging.2. Suitable for "OPP/CPP/lamination film" as a sealing material.
Automatic Single Vibrator Bowl Screw Packaging Machine XK-B861

1) Technical characteristics1. Vibrator bowl automatically arranges materials, automatic counting, automatic filling, automatic packaging, sealing function, and output counting.2. Adopt intelligent temperature control system, stable temperature control, temperature adjustable according to needs.3. The length of the packaging bag is adjustable, the total number of packaging is adjustable. Automatically alarm when the set number is reached.4. After packaging, the bag shape is uniform, regular, beautiful, and firm. And expansion equipment such as coding machine, check weighing, labeling machine, hoist, etc. can also be added.2) Scope of application and functional characteristics1. This product is suitable for automatic packaging of single materials, such as screws, nuts, flat washers, spring washers, toys, standard parts, etc. After the vibrator bowl is automatically counted, the product is filled into the automatic packaging of the forming machine, and the spare equipment can also be used space artificially puts other materials in mixed packaging.2. Suitable for "OPP/CPP/lamination film" as a sealing material.
Double Vibrator Automatic Packaging Machine XK-B862P

1) Technical characteristics1. Vibrator bowl automatically arranges materials, automatic counting, automatic filling, automatic packaging, sealing function, and output counting.2. Adopt intelligent temperature control system, stable temperature control, temperature adjustable according to needs.3. The length of the packaging bag is adjustable, the total number of packaging is adjustable. Automatic alarm when the set number is reached.4. After packaging, the bag shape is uniform, regular, beautiful, and firm. And expansion equipment such as coding machine, check weighing, labeling machine, hoist, etc. can also be added.2) Scope of application and functional characteristics1. This product is suitable for automatic mixing or separate packaging of two materials, such as toys, casters, plastic parts, standard parts, etc. After the vibrator bowl is automatically counted, the belt is conveyed to fill the product into the automatic packaging of the forming machine. It is also possible to use the spare space of the equipment to manually put other materials in mixed packaging.2. Suitable for "OPP/CPP/PE lamination film" as a sealing material.
