Our part counting machine has reasonable design, compact structure, simple operation, convenient maintenance, reliable performance and high quality.

1) Technical characteristics

1. Automatic filling, automatic packing, sealing function, output count.

2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.

3. The length of the bag can be adjusted, the total amount of the package can be adjusted, and the automatic alarm can be reached when the set number of times is reached.

4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.


2) Scope of application and functional features

1.It is suitable for automatic mixing or separate packaging of 2 kinds of materials, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc. this product uses chain bucket turns box, vibrator bowl, automatic counting on materials to box, the bucket will to molding machine automatic packaging materials for the products, also can use artificial into other materials mixed packing equipment free space.

2. It is suitable for "OPP/CPP/ lamination film " as sealing material.

Products Details

Relying on advanced technology, excellent production capabilities, and perfect service, Xingke takes the lead in the industry now and spreads our Xingke all over the world. Together with our products, our services are also supplied to be the highest-level. part counting machine We promise that we provide every customer with high-quality products including part counting machine and comprehensive services. If you want to know more details, we are glad to tell you. has strong production strength and strict management system. It not only has advanced production and quality inspection equipment, but also has established a perfect quality management system to ensure that part counting machine produced are high-quality, safe and reliable mechanical products.

Product Parameters

Equipment Model: XK-B862

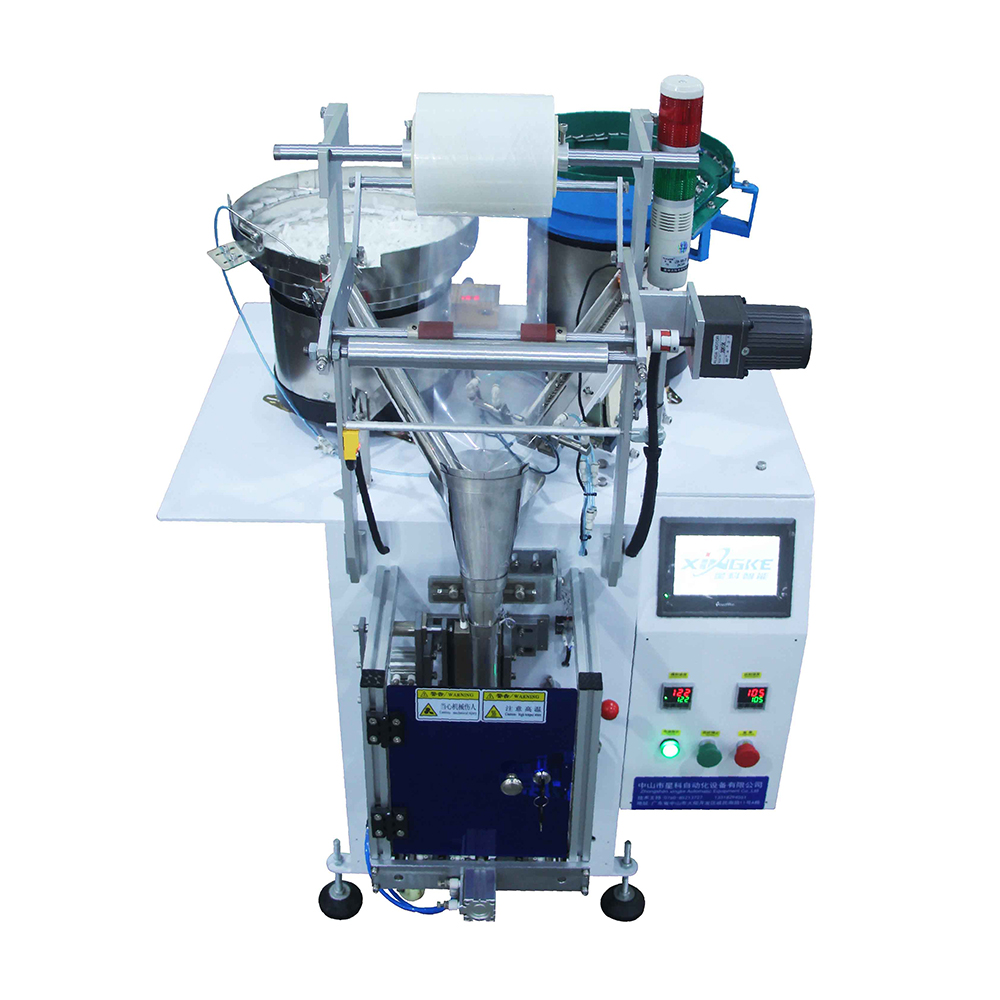

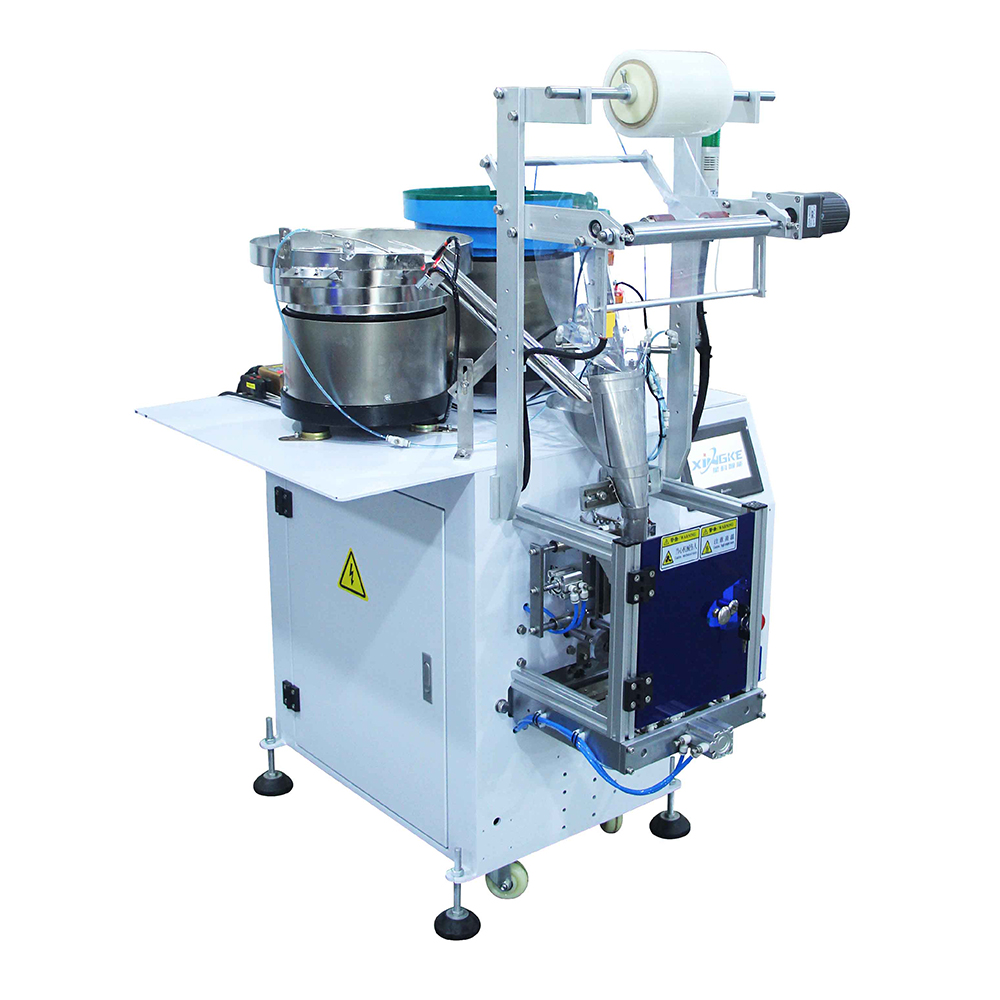

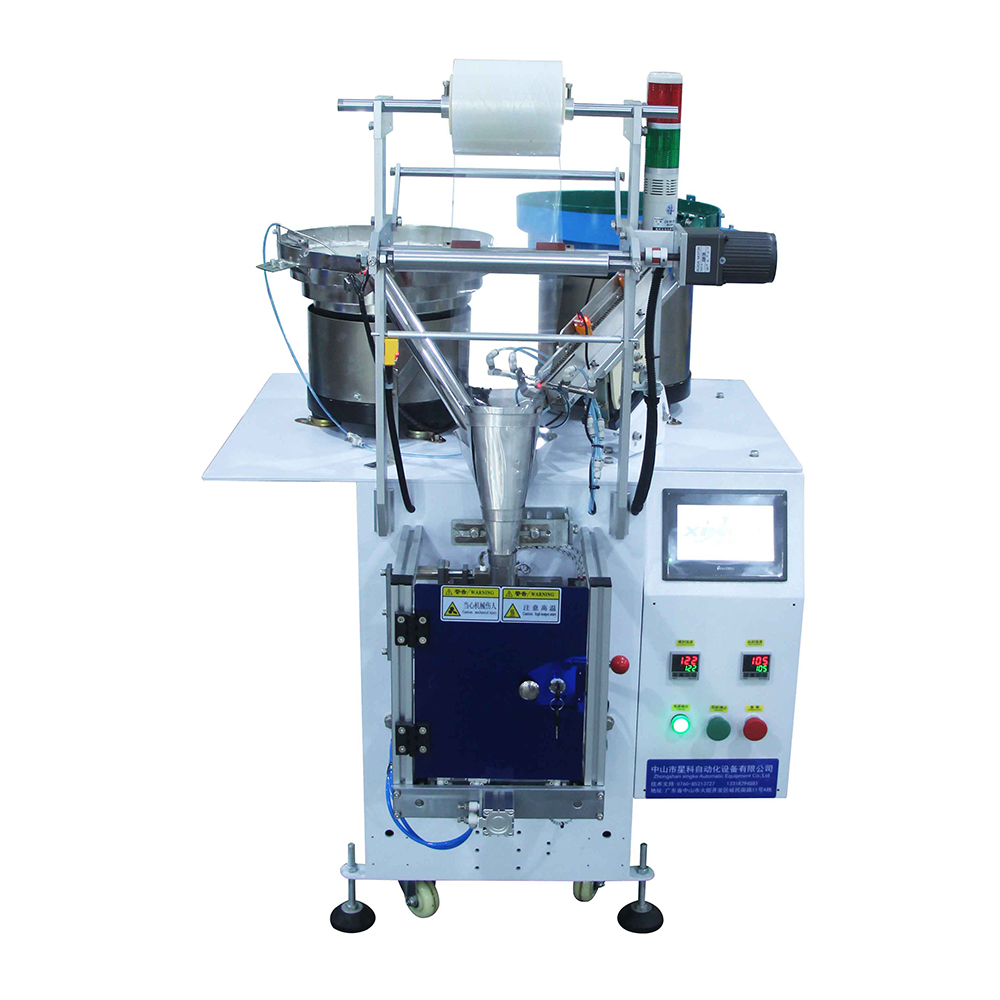

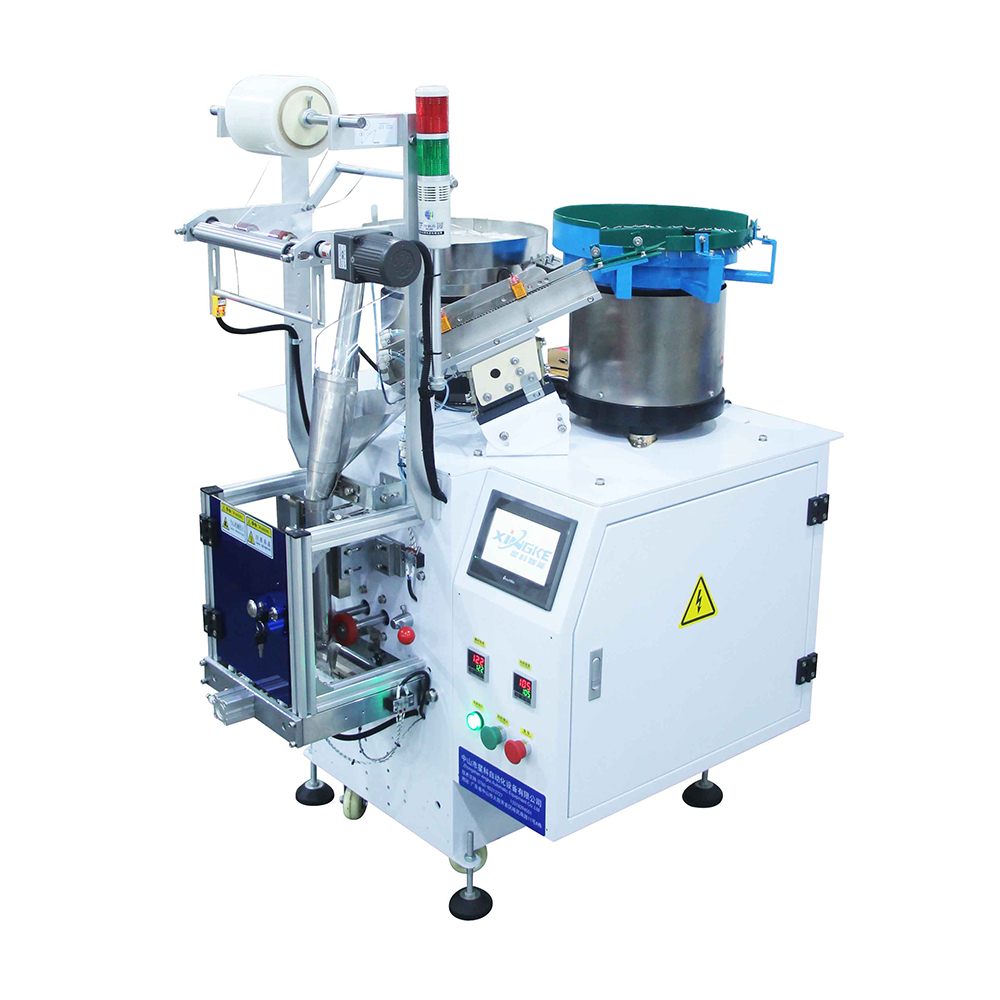

Product Name: Two Vibrator Bowl Packaging Machine

Counting Method: Optical fiber counting/blocking and putting

Bag Size: Width 40-140,  length less than 200 (conventional 140)

Packing Speed: 1-60 bags/min

Sealing Shape: Stripe, back seal/three side seal (usually back seal)

Voltage Power: 220V/50HZ  P≈0.6KW

Air Supply: 0.4-0.8MPA

Bag's both Sides : Figure cutter tooth shape

Dimensions: Length 1100mm/ width 1000mm/ height 1550mm

Weight: About 180KG
