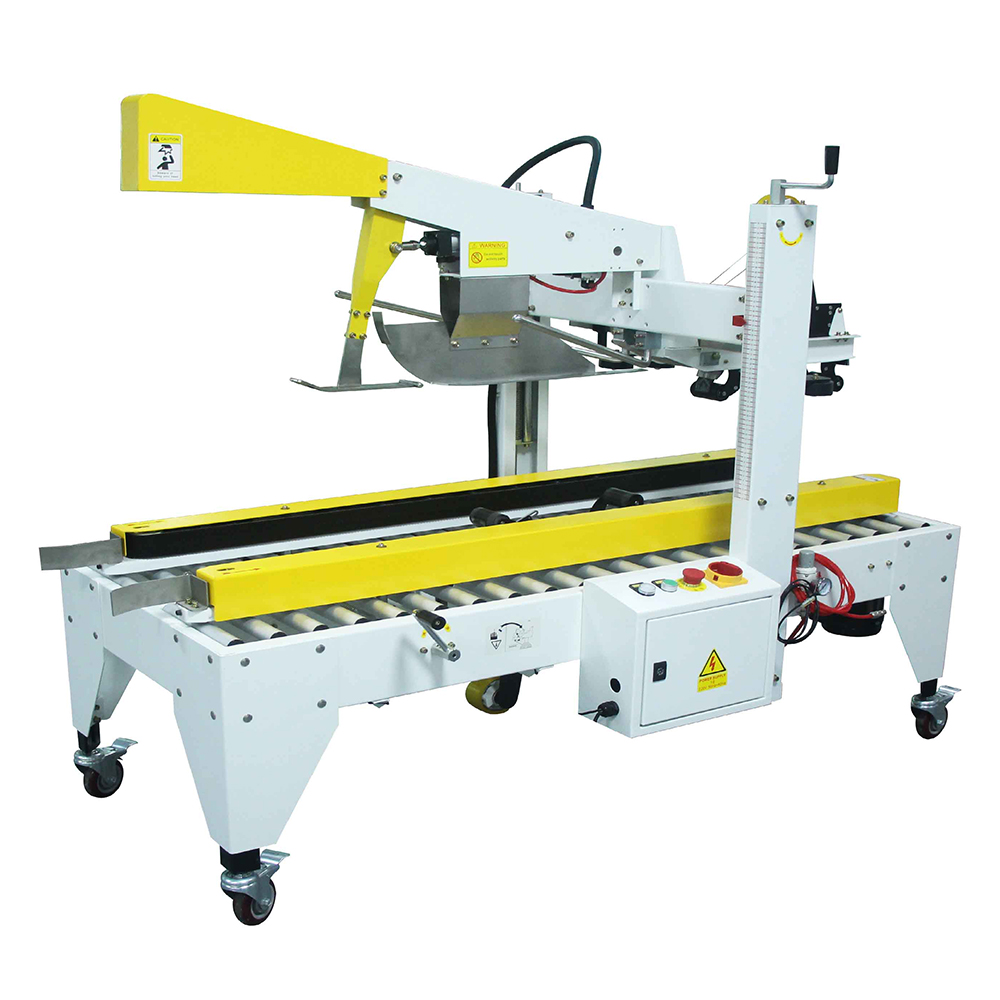

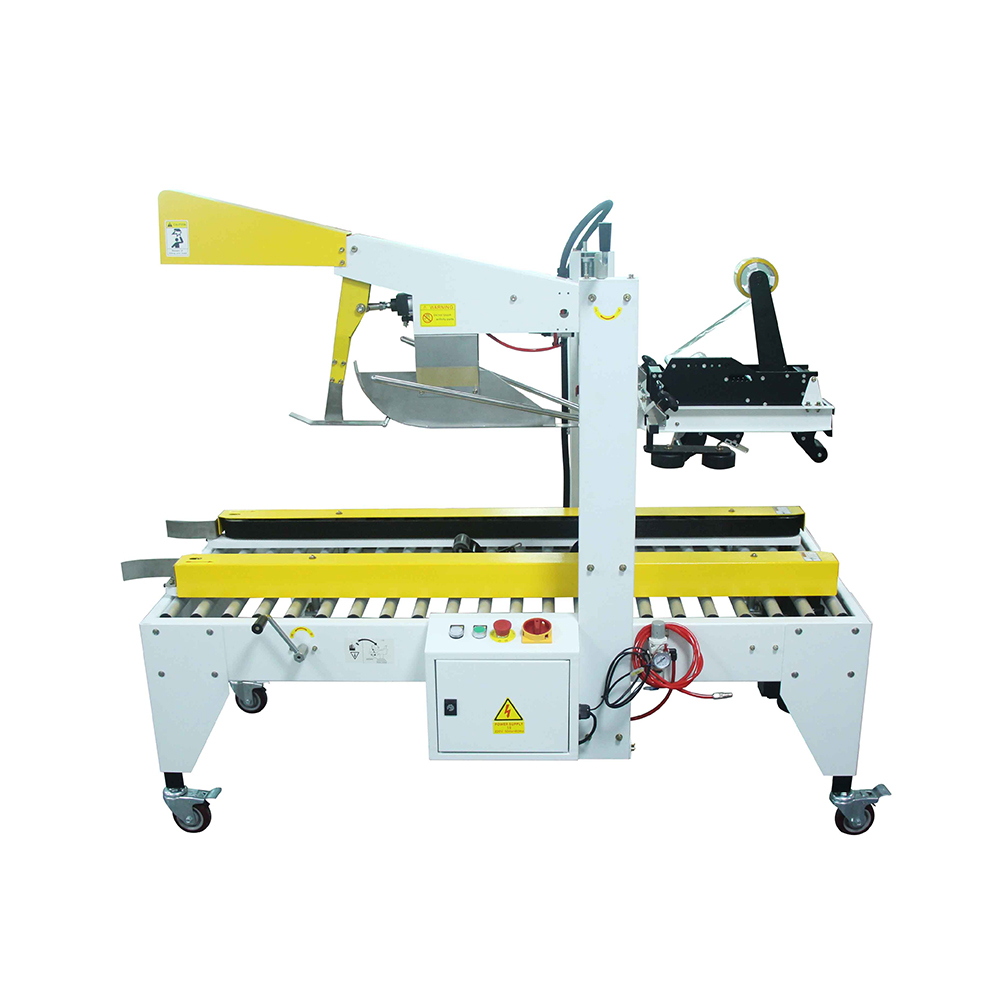

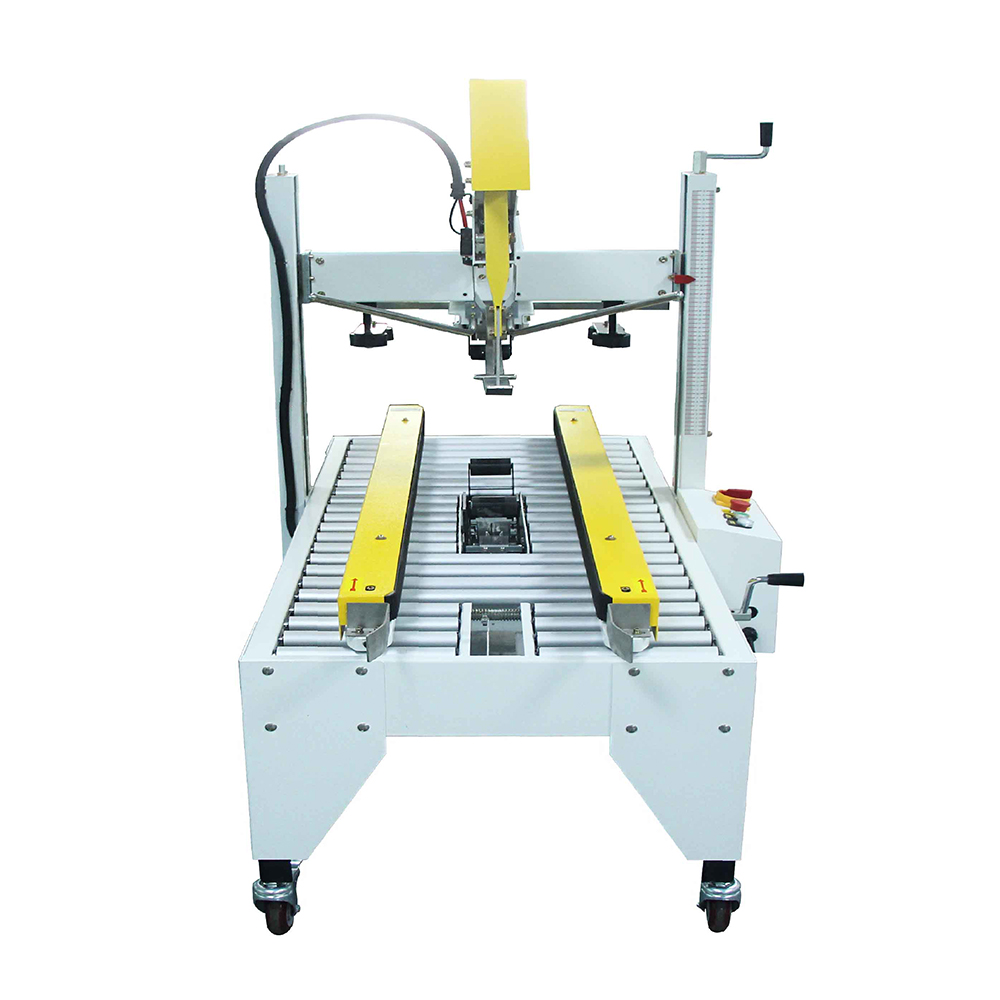

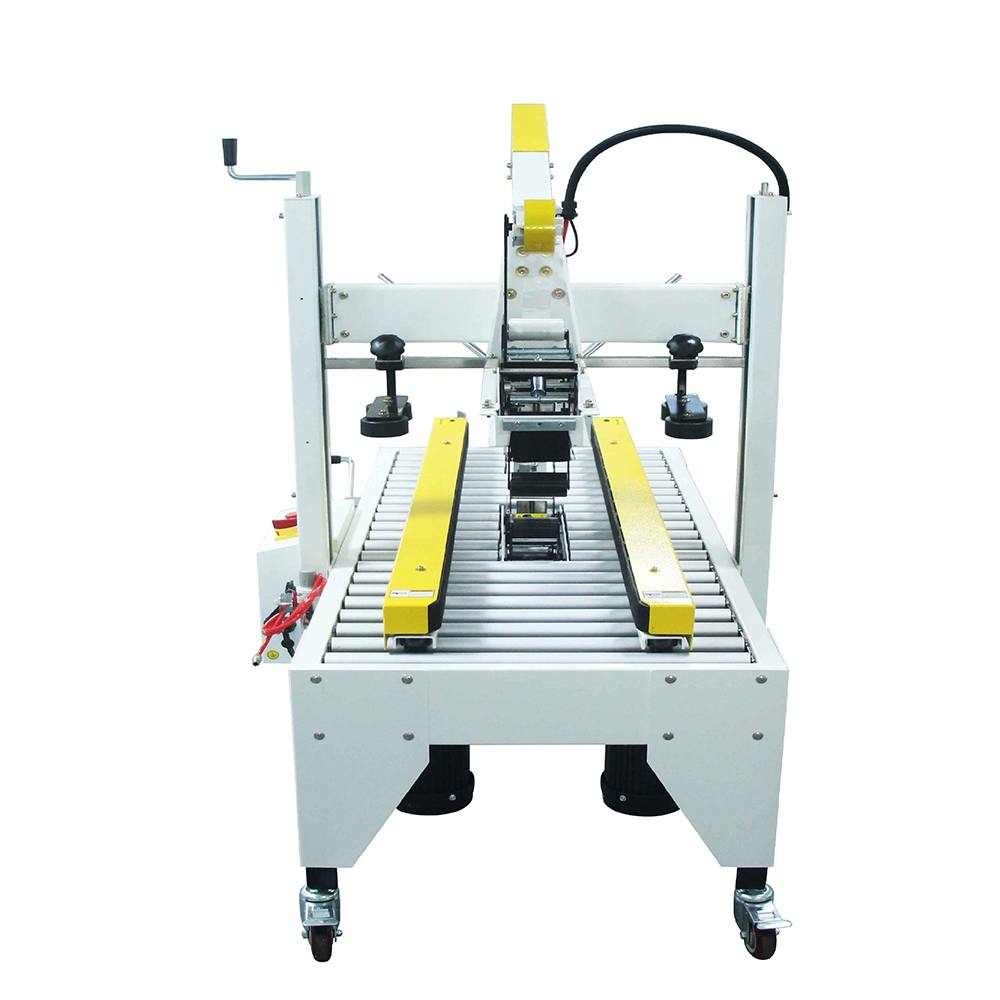

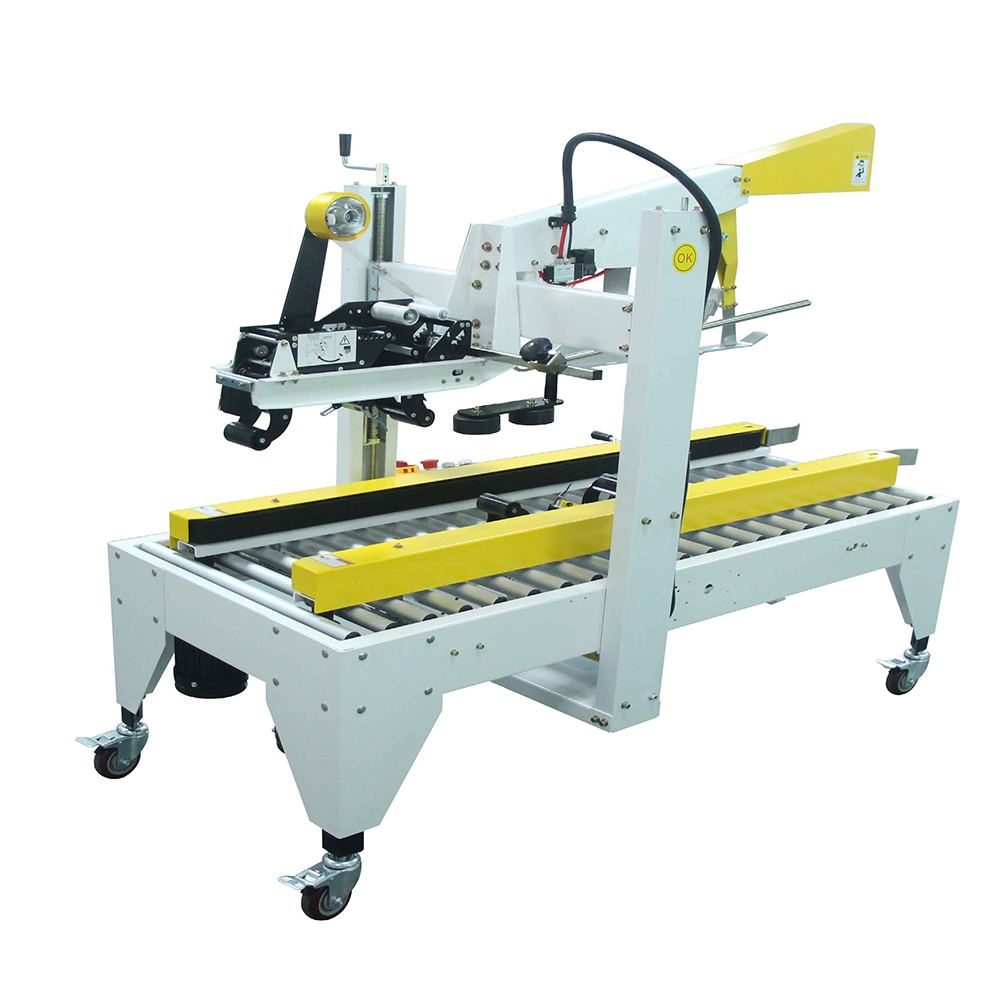

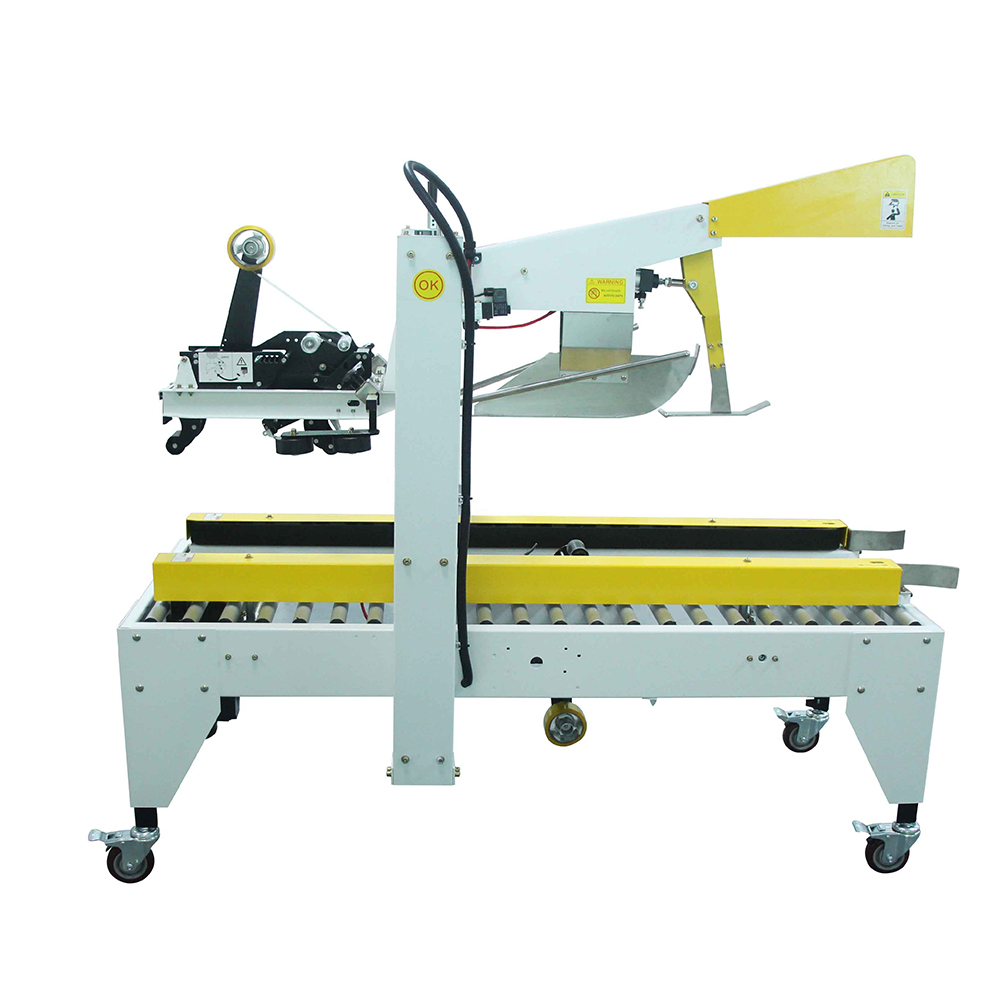

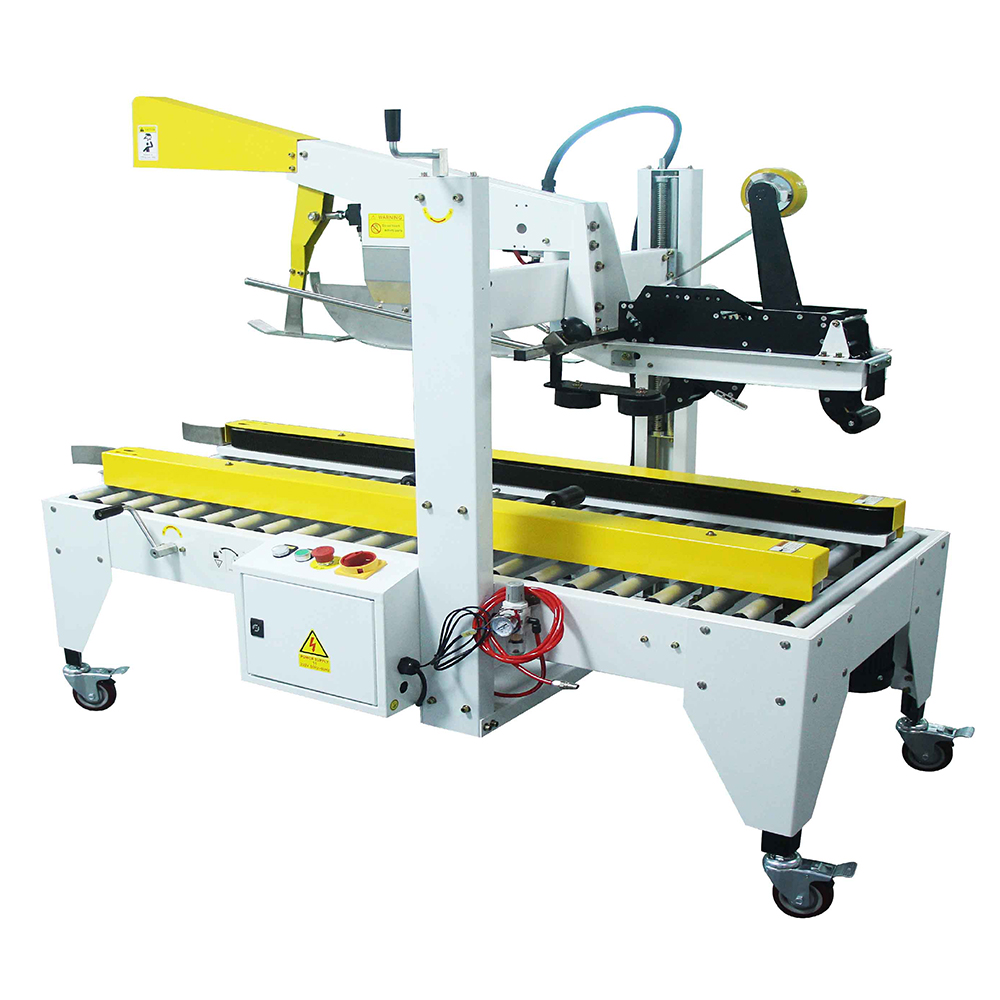

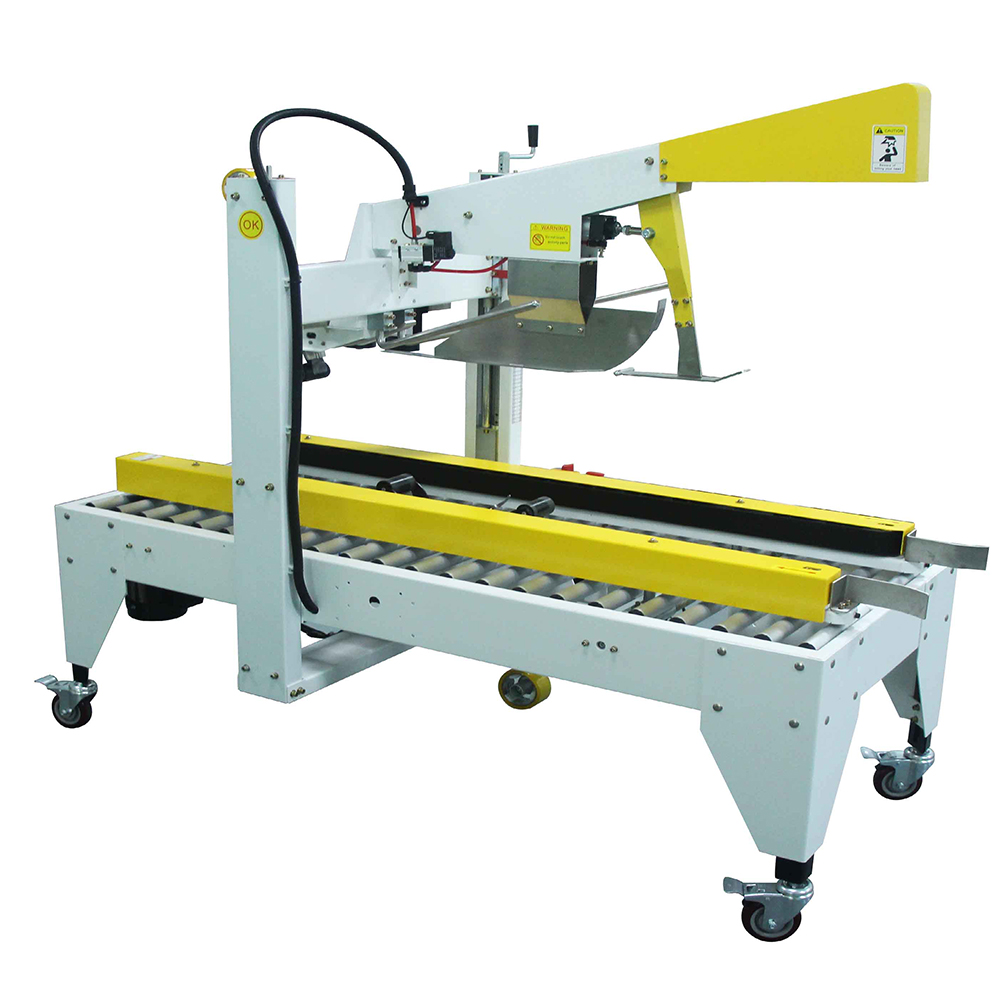

Xk-Fl500c (Automatic Cover Folding And Sealing Machine)

Xk-Fl500c (Automatic Cover Folding And Sealing Machine)

1) Technical characteristics

1. The transmission mode adopts the lower two side belt drive, which can be wired or operated in a single machine. The upper cover is automatically folded, and the upper and lower one is sealed at one time.

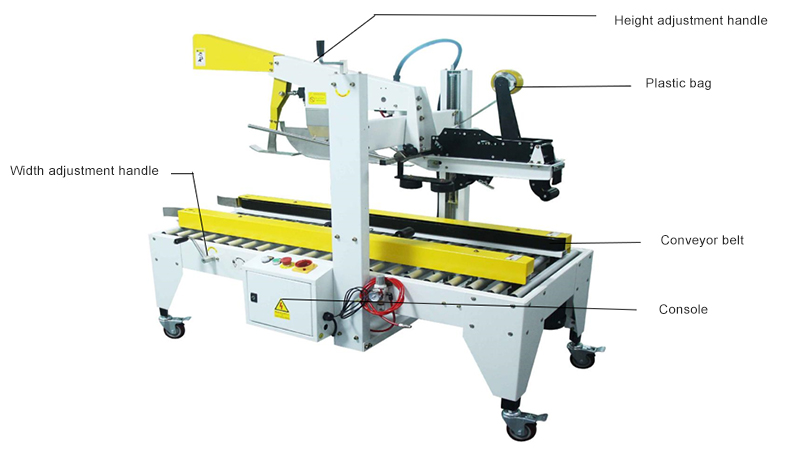

2. Adjust the height and width manually when changing specifications.

3. The sealing machine adopts belt conveyor and power drum.

4. Worktable can be customized according to customer requirements.

5. Electrical configuration: French "Schneider" is used as the contactor, Taiwan "Yadeke" as the pneumatic component, and Taiwan "as the motor.

6. Minimum carton size: 200mm long/120mm wide/120mm high,

Maximum carton size: 600mm long/500mm wide/600mm high.

2) Scope of application and functional characteristics

1. This product is suitable for carton packaging of food, pharmaceutical and chemical products, electronic products, printed products, toys, furniture, bathroom lighting and other products, such as carton, carton, door panel, glass, and hardware frame. This model is mainly used for carton packaging.

2. Suitable for kraft paper tape and BOPP tape.

SEND INQUIRY NOW
SEND INQUIRY NOW
  • Product Details
Product Parameters


Equipment Model: XK-FX500C

Conveying Mode: Belt+roller

Packaging Speed: 800~900 cases/hour

Noise Level: Maximum 80DBA

Power Consumption: 0.2KW maximum

Air Source: 3kgf/cm ²    100nl/min

Power Supply (optional): 220V/50Hz/60Hz/1Ph 380V/50Hz/60Hz/3Ph

Boundary Dimension: 1780mm long/940mm wide/1510mm high

Machine Weight: 180KG
