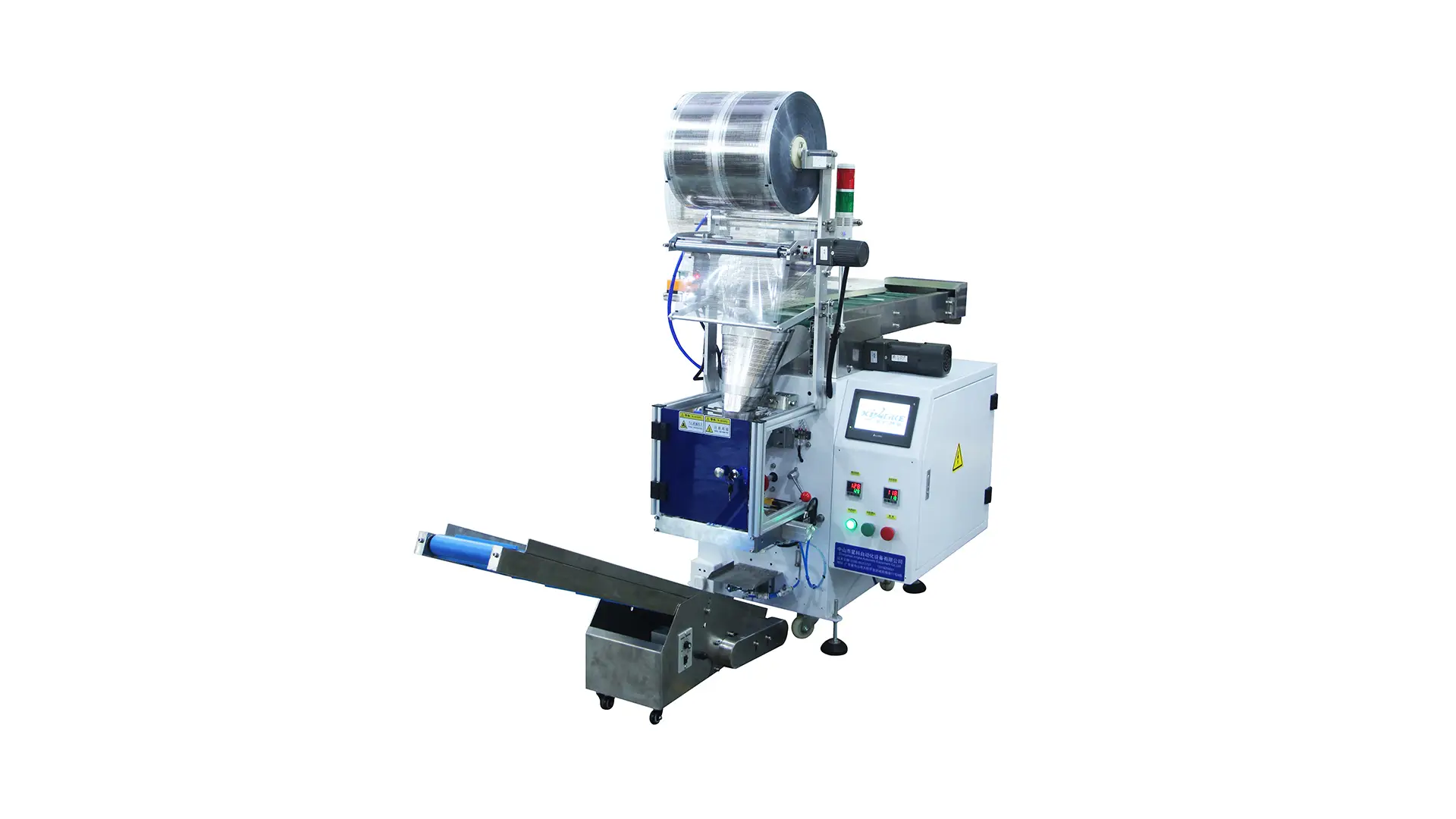

XK-B860P(Semi-Automatic Sealing Bagging Casters Filling Bag Packaging Machine)

1) Technical characteristics

1. Automatic filling, automatic packing, sealing function, output count.

2.Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.

3. The length of the bag can be adjusted, the total amount of the package can be adjusted, and the automatic alarm can be reached when the set number of times is reached.

4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.

2) Scope of application and functional features

1.This product is suitable for products with long, irregular product shapes, large length and width ratios, or products that have extremely high surface requirements such as electroplating, spray painting, baking varnish and other process treatments, electroplating process plastic products, toys, bolts, screwdrivers, Data , etc., using manual material input, belt conveying material to the forming machine, automatic filling and packaging.

2. It is suitable for "OPP/CPP/ lamination film" as sealing material.

Product Parameters

Equipment Model: XK-B860P

Counting Method: Manual placement

Bag Size: Width 40-140 length 200 (conventional 140)

Packing Speed: 1-60 bags/min

Sealing Shape: Stripe, back sealing/three side sealing (conventional back sealing)

Voltage Power: 220V/50HZ  P≈0.6KW

Air Supply: 0.4-0.8MPA

Bag Mouth Shape: Figure cutter tooth shape

Dimensions: 1700mm*750mm*1550mm(L*W*H)

Weight: About 100KG
