Single Station Screw Packaging Machine Big Bag Belt Type Accessories

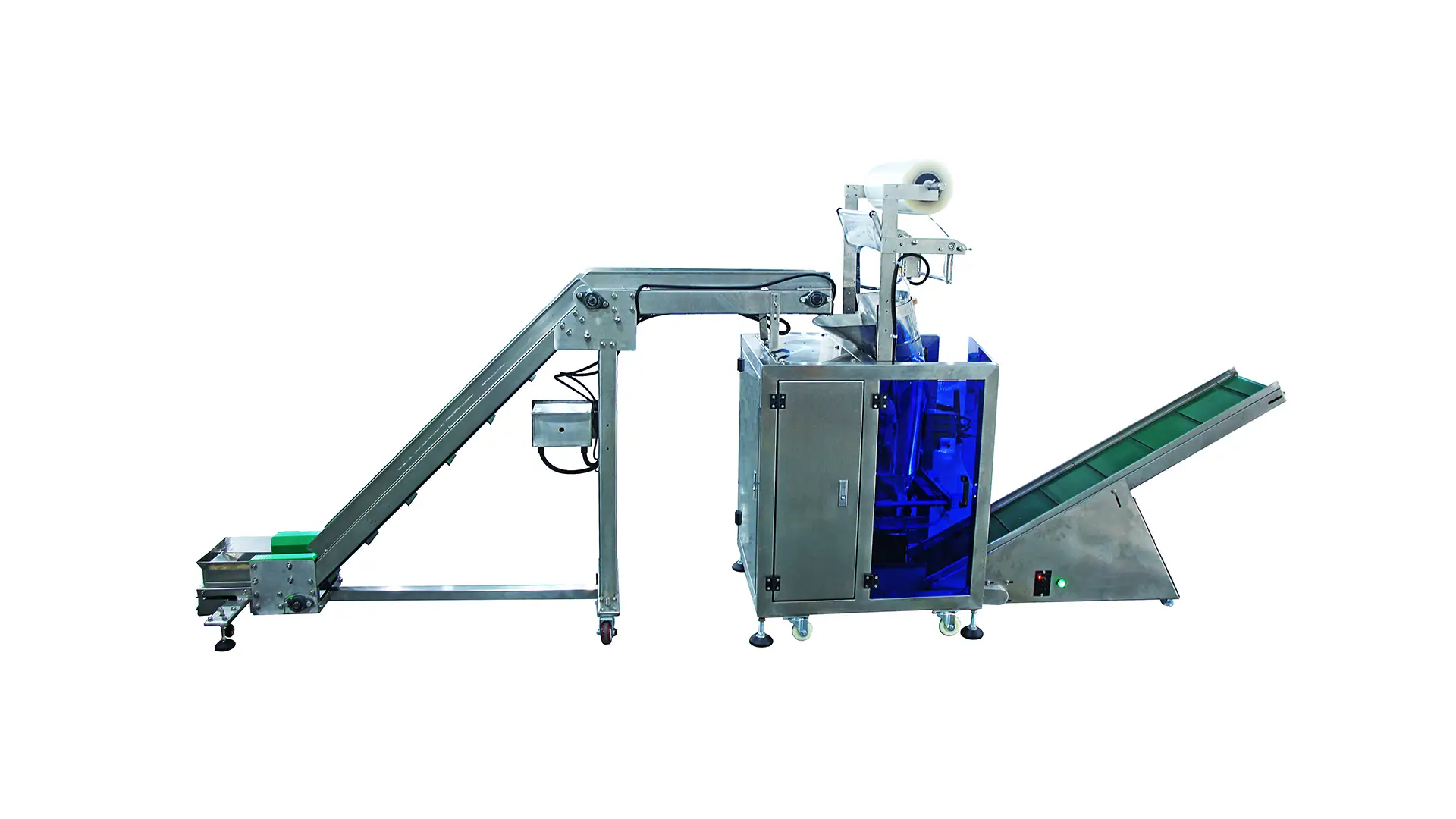

XK-B860P-B861 (Single Station Screw Packaging Machine With Big Bag Belt Type Packaging Machine Bag-in-bag Accessories Packaging).

1) Technical characteristics
1.Vibrator bowl automatically arranges materials, automatic counting, automatic filling, automatic packaging, sealing function, and output counting.
2. Adopt intelligent temperature control system, stable temperature control, temperature adjustable according to needs.
3.The length of the packaging bag is adjustable, the total number of packaging is adjustable, and the set number is automatically alarmed.
4.After packaging, the bag shape is uniform, regular, beautiful, and firm, and expansion equipment such as coding machine, check weighing, labeling machine, hoist, etc. can also be added.
2) Scope of application and functional characteristics
1.This product is suitable for screw packaging and then secondary bagging and counting packaging. It can also be used for single or mixed packaging of other materials and then secondary bagging and packaging, such as nuts, flat gaskets, sealing rings, standard parts, fasteners, toys and other accessories.
2. Suitable for "OPP/CPP/PE lamination film" as a sealing material.

    oops...!

    no product data.

    Go to homepage
    Single Station Screw Packaging Machine Big Bag Belt Type Accessories 3
    Product Parameters

    Equipment model: XK-B860P-B861

    Counting method:  Fiber counting/blocking and putting

    Bag size:Width 40-140, length within 200(usually 140)

    Packing speed: 1-60 bags/min

    Sealing shape: Stripes, back seal/three-side seal (usually back seal)

    Voltage power: 220V/50Hz  P≈0.6KW

    Air supply: 0.4-0.8Mpa

    Bag mouth shape: Figure cutter tooth shape

    Dimensions: Length 1100mm/width 750mm/height 1550mm

    Weight: About 150KG


    Single Station Screw Packaging Machine Big Bag Belt Type Accessories 4
    Single Station Screw Packaging Machine Big Bag Belt Type Accessories 5


    Single Station Screw Packaging Machine Big Bag Belt Type Accessories 6
    Single Station Screw Packaging Machine Big Bag Belt Type Accessories 7


    Single Station Screw Packaging Machine Big Bag Belt Type Accessories 8
    Single Station Screw Packaging Machine Big Bag Belt Type Accessories 9


    Single Station Screw Packaging Machine Big Bag Belt Type Accessories 10
