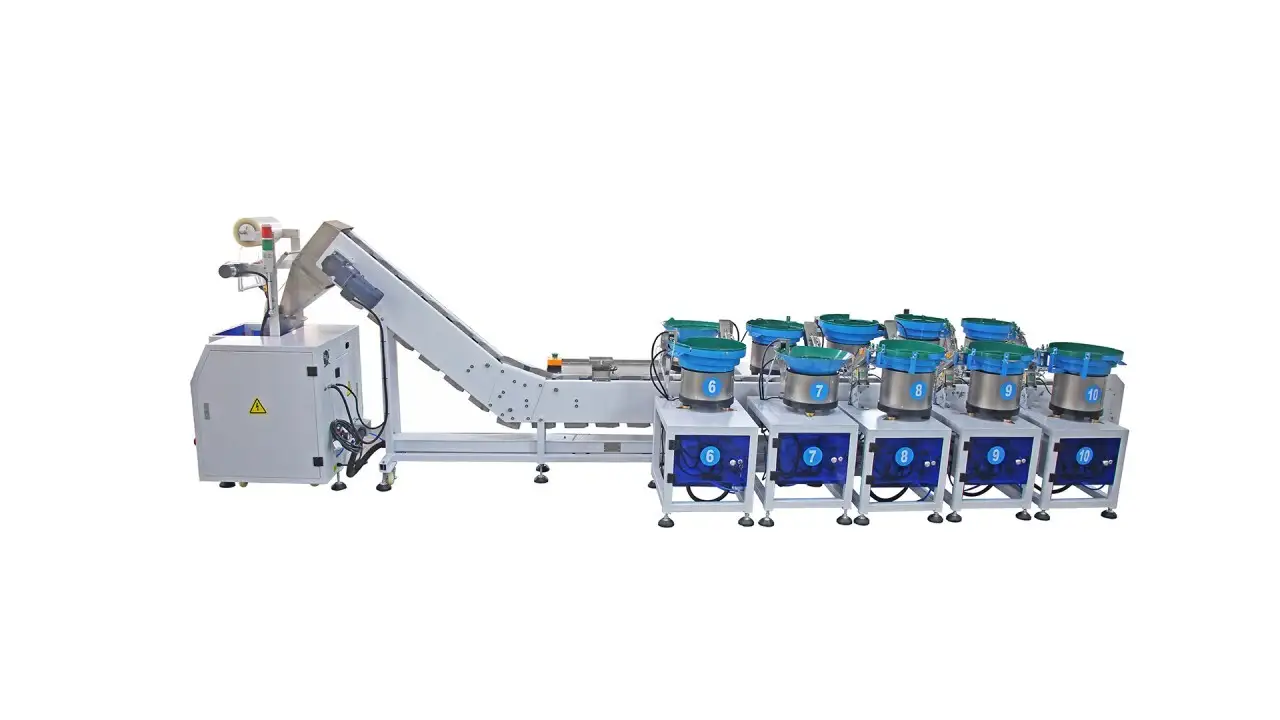

Hardware Accessories Automatic Counting Packaging Machine XK-B870Z

XK-B870Z(Screw Hardware Furniture Bathroom Accessories Automatic Counting 10 Vibrator Bowls Corner Packaging Machine).

    oops...!

    no product data.

    Go to homepage

    1) Technical characteristics

    1.Vibrator bowl automatically arranges materials, automatic counting, automatic filling, automatic packaging, sealing function, and output counting.

    2. Adopt intelligent temperature control system, stable temperature control, temperature adjustable according to needs.

    3. The length of the packaging bag is adjustable, the total number of packaging is adjustable. Automatic alarm when the set number is reached.

    4. After packaging, the bag shape is uniform, regular, beautiful, and firm, and expansion equipment such as coding machine, check weighing, labeling machine, hoist, etc. can also be added.


    2) Scope of application and functional characteristics

    1. This product is suitable for automatic mixing or individual packaging of less than seven materials, such as screws, nuts, flat washers, spring washers, toys, standard parts, etc. This product uses a chain bucket to drive the material box to rotate, and the vibrator bowl automatically counts materials put the product into the material box, the chain bucket fills the product into the automatic packaging of the forming machine. This product adopts a corner method to reduce the height of the trailer, which is convenient for manual putting, and it can also use the spare space of the equipment to manually put other materials in mixed packaging.

    2. Suitable for "OPP/CPP/lamination film" as a sealing material.



    Hardware Accessories Automatic Counting Packaging Machine XK-B870Z 3
    Product Parameters

    Equipment model: XK-B870Z

    Counting method: Fiber counting/blocking and putting

    Bag size: Width 40-140 length within 200 (normal 140)

    Packing speed: 1-60 bags/min

    Sealing shape: Stripes, back seal/three-side seal (conventional back seal)

    Voltage power: 220V/50Hz  P≈2KW

    Air Supply: 0.4-0.8Mpa

    Bag mouth shape: Pattern knife tooth type

    Dimensions: Length 4200mm/width 2100mm/height 1650mm

    Weight: About 800KG


    Hardware Accessories Automatic Counting Packaging Machine XK-B870Z 4
    Hardware Accessories Automatic Counting Packaging Machine XK-B870Z 5


    Hardware Accessories Automatic Counting Packaging Machine XK-B870Z 6
    Hardware Accessories Automatic Counting Packaging Machine XK-B870Z 7
