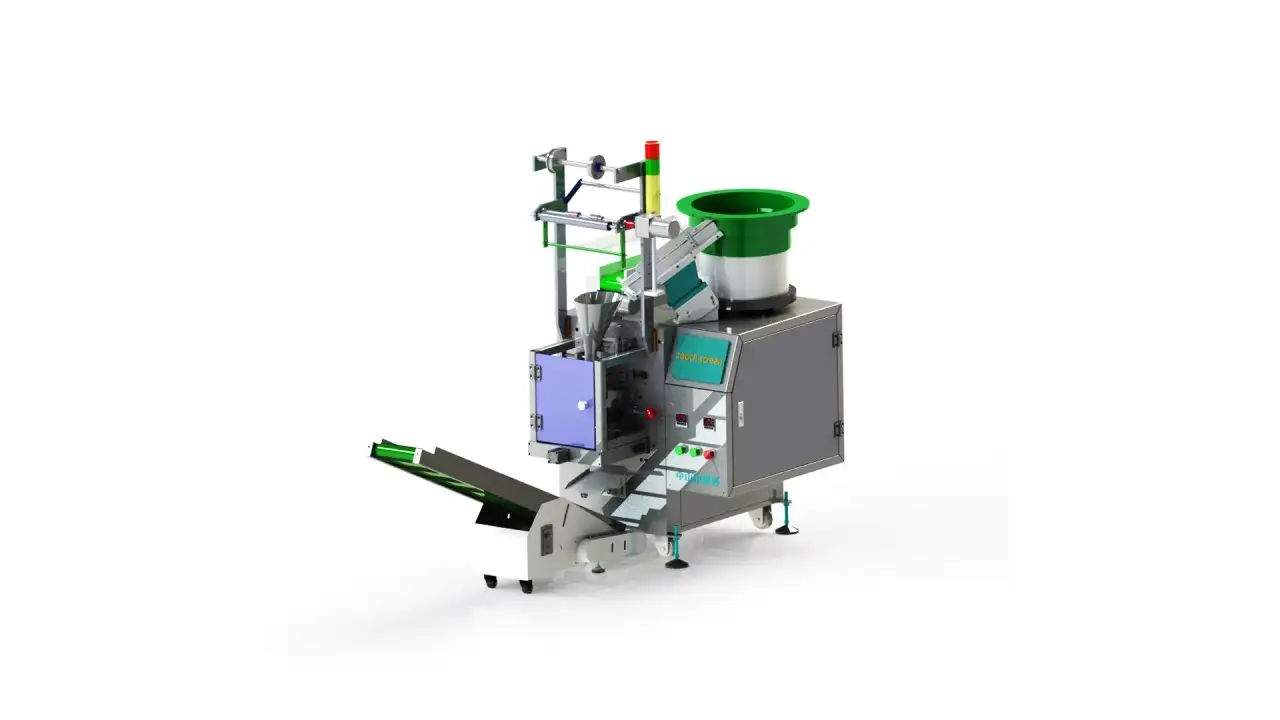

Automatic Packaging Machine With Single Station Sealing XK-B861

1) Technical characteristics
1.Vibrator bowl automatically arranges materials, automatic counting, automatic filling, automatic packaging, sealing function, and output counting.
2.Adopt intelligent temperature control system, stable temperature control, temperature adjustable according to needs.
3. The length of the packaging bag is adjustable, the total number of packaging is adjustable. Automatic alarm when the set number is reached.
4. After packaging, the bag shape is uniform, regular, beautiful, and firm. And expansion equipment such as coding machine, check weighing, labeling machine, hoist, etc. can also be added.

2) Scope of application and functional characteristics
1. This automatic packaging machine is suitable for automatic packaging of single materials, such as screws, nuts, flat washers, spring washers, toys, standard parts, etc. After the vibrator bowl is automatically counted, the product is filled into the automatic packaging of the former, and the spare equipment can also be used space artificially puts other materials in mixed packaging.
2. Suitable for "OPP/CPP/lamination film" as a sealing material.

Product Parameters

Equipment model: XK-B861

Counting method: Fiber counting/blocking discharge

Bag size: Width 40-140 length within 200 (normal 140)

Packing speed: 1-60 bags/min

Sealing shape: Stripes, back seal/three-side seal (conventional back seal)

Voltage power: 220V/50Hz  P≈0.6KW

Air Supply: 0.4-0.8MPA

Bag mouth shape: Pattern knife tooth type

Dimensions: Length 1100mm/width 1000mm/height 1600mm

Weight: About 200KG
