Xingke - Professional Automatic Packing Machine Manufacturer with 15+ years production experience.

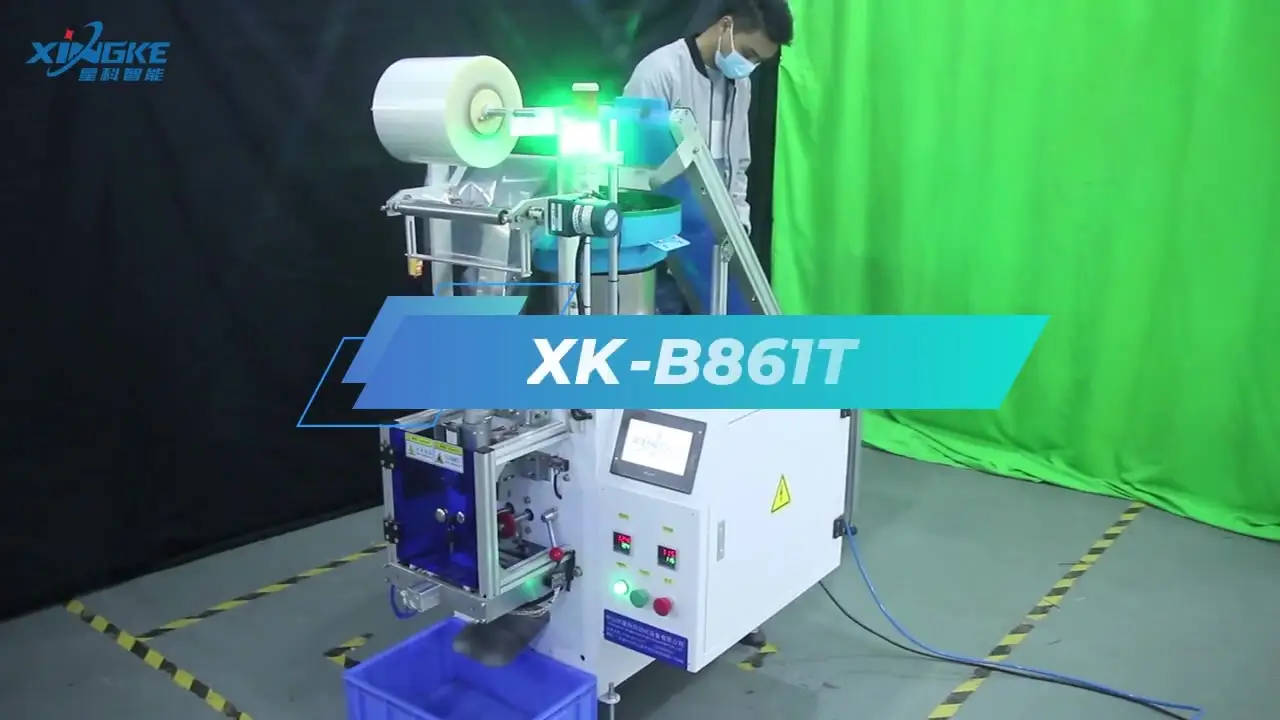

XK-B861T One Vibrator Bowl Weighing Complement Packaging Machine 1
XK-B861T One Vibrator Bowl Weighing Complement Packaging Machine 2
XK-B861T One Vibrator Bowl Weighing Complement Packaging Machine 1
XK-B861T One Vibrator Bowl Weighing Complement Packaging Machine 2

XK-B861T One Vibrator Bowl Weighing Complement Packaging Machine

XK-B862 Xingke 2 Items Mixing Products Packing Continuous Packages Packaging Machine-副本.

(1) Technical features

1. The vibrating plate automatically arranges materials, automatically counts, automatically fills, automatically packs, seals, and counts output.

2. The intelligent temperature control system is adopted, the temperature control is stable, and the temperature can be adjusted according to the needs.

3. The length of the packaging bag is adjustable, the total number of packaging is adjustable, and the set number of times is automatically alarmed.

4. After packaging, the bag shape is uniform, regular, beautiful and firm. It can also be equipped with expansion equipment such as coding machine, check weighing machine, labeling machine and elevator, and other materials can be mixed and packaged manually in the spare space of the equipment.



(2) Scope of application and functional characteristics

1.This product is suitable for automatic packaging of single materials, such as screws, nuts, flat pads, spring pads, toys, standard parts, etc. After the vibration plate is automatically counted, the product is filled into the automatic packaging of the molding machine, and the climbing belt is added to connect other machines to put materials into the vibration plate.

2. It is suitable for "OPP/CPP/composite film" as sealing material.


    oops...!

    no product data.

    Go to homepage
    Company Introduction
    Xingke is the sole proprietor of Zhongshan Xingke Automation Equipment Co., Ltd.. We are an ISO 9001 certified company Pioneer in manufacturing of Packaging Machine at a larger range in China, with strict attention to quality standards for defect free products, high durability and its robust construction. The complete range of products are thoroughly checked and tested to threshold levels to ascertain its reliability.
    Product Introduction


    Equipment mode

    XK-B861T

    Counting method

    fiber counting/stopping and discharging

    Bag siz

    width 40-140 within 200 length

    Packing speed

    1-60 bags/min

    Seal shap

    stripe, back seal/trilateral seal (normally back seal)

    Voltage power

     220V/50Hz P≈0.6KW

    Air source requirement

    0.4-0.8MPA

    Bag mouth shap

    figure cutter tooth shape

    Dimensions

     length 1300mm/width 1020mm/height 1500mm

    Weight

    about 150KG


    Product Introduction

    XK-B861T One Vibrator Bowl Weighing Complement Packaging Machine 3XK-B861T One Vibrator Bowl Weighing Complement Packaging Machine 4XK-B861T One Vibrator Bowl Weighing Complement Packaging Machine 5XK-B861T One Vibrator Bowl Weighing Complement Packaging Machine 6

    Company Introduction
    Established in the year 2017, we, Zhongshan Xingke Automation Equipment Co., Ltd., are engaged in manufacturer, supplier, exporter and trader of Packaging Machine. Our range of products encompasses Vertical Packaging Machine,Horizontal Packaging Machine,Sealing And Cutting Packaging Machine,Auxiliary Packaging Equipment. We are backed by a diligent team of professionals, which helps us in offering an impeccable array of products to the clients. These experts utilize their vast industry experience and in-depth knowledge to formulated international quality standard products. Moreover, the quality controllers of our team stringently test the final products on certain parameters of quality, so as to ensure their effectiveness.
