XK-C802Z weighing and complementing packaging machine for plastic parts Supplier & manufacturers | Xingke

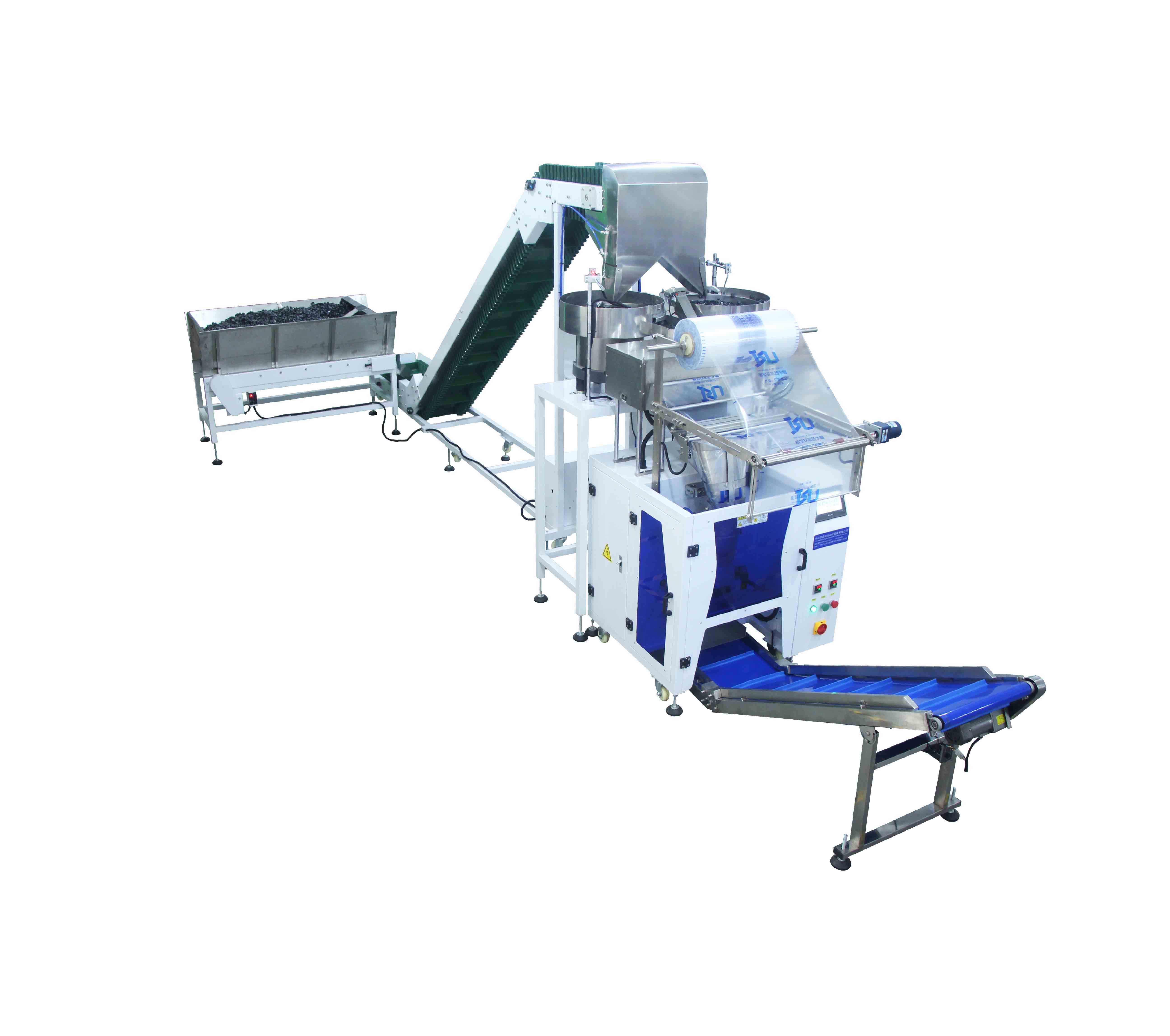

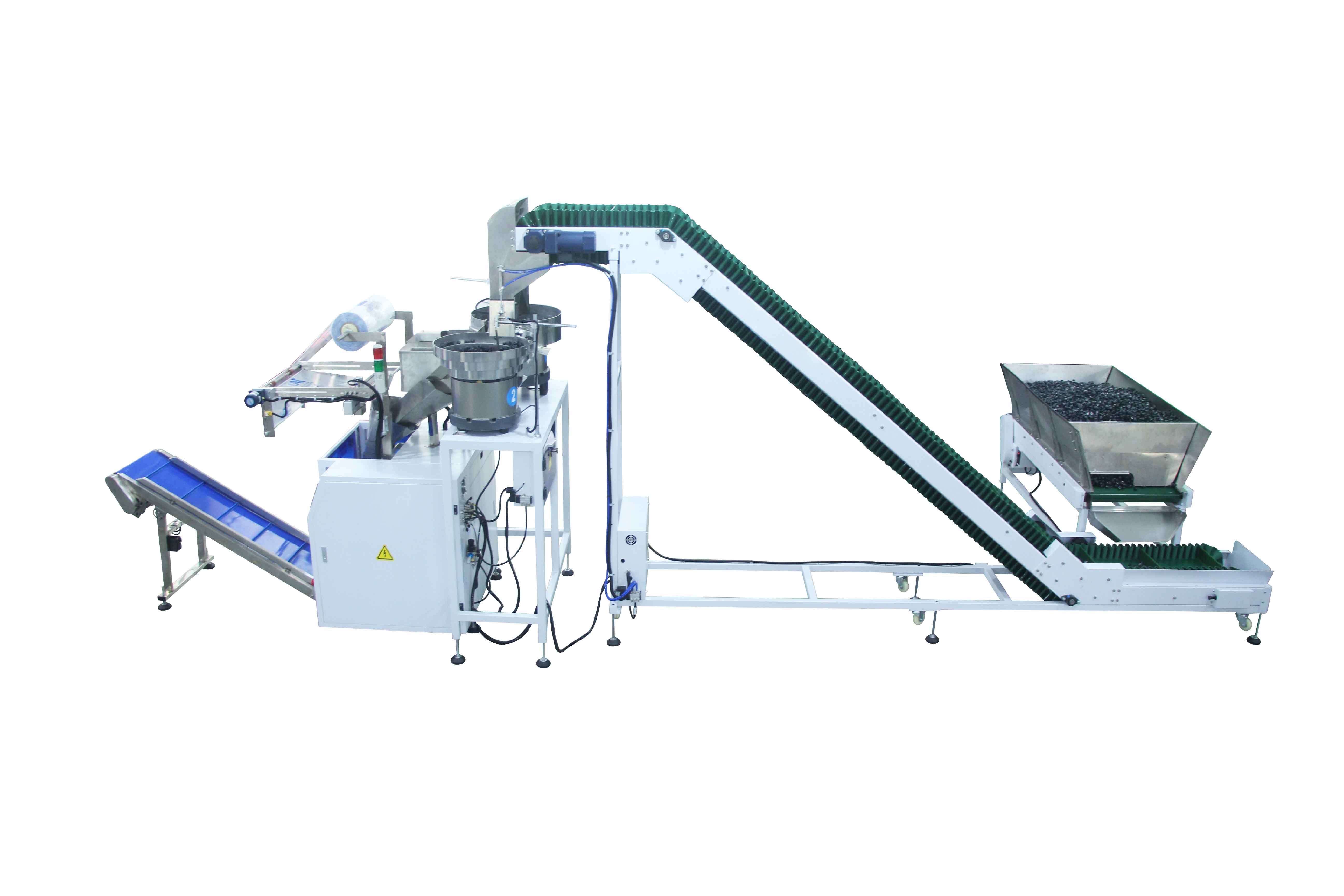

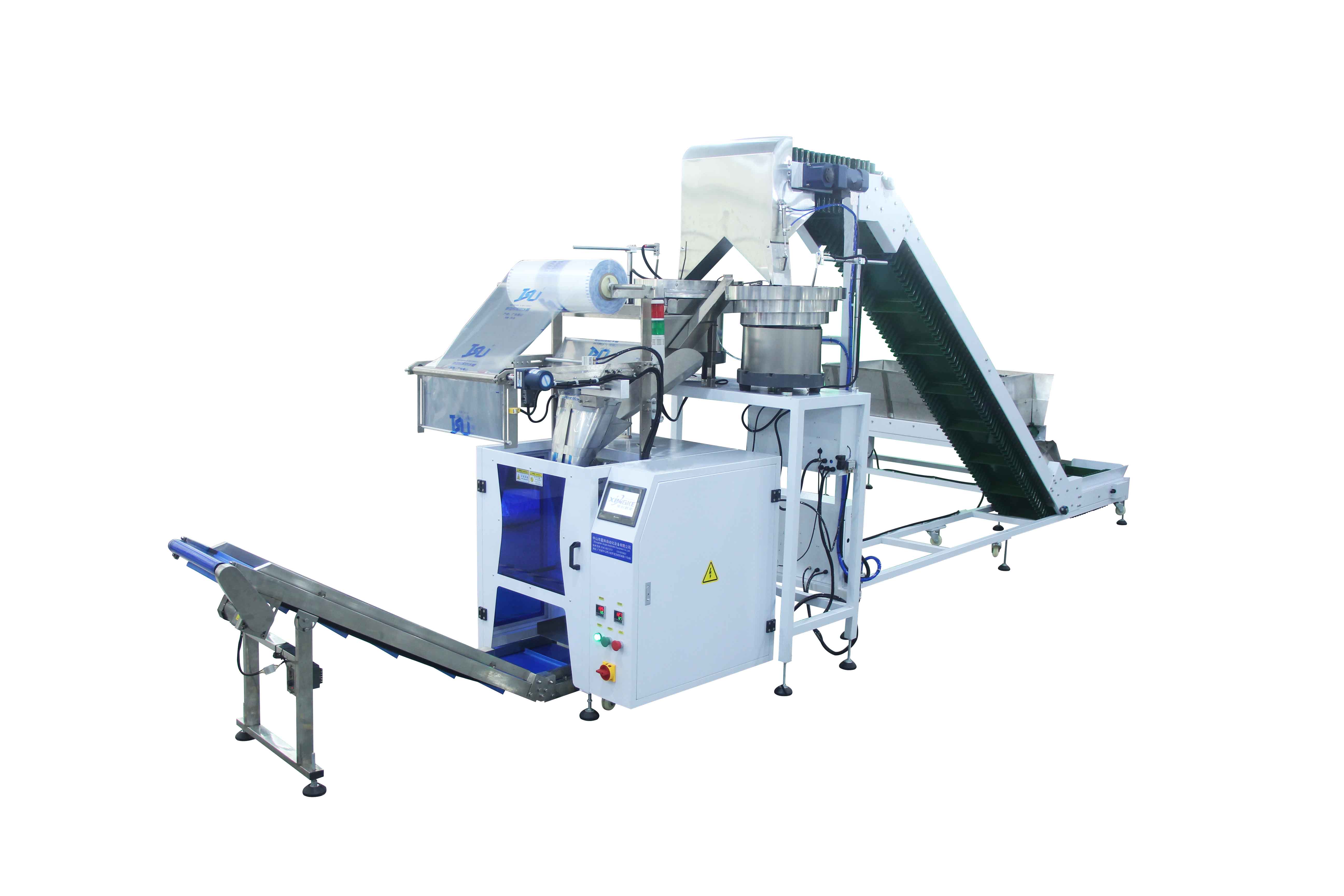

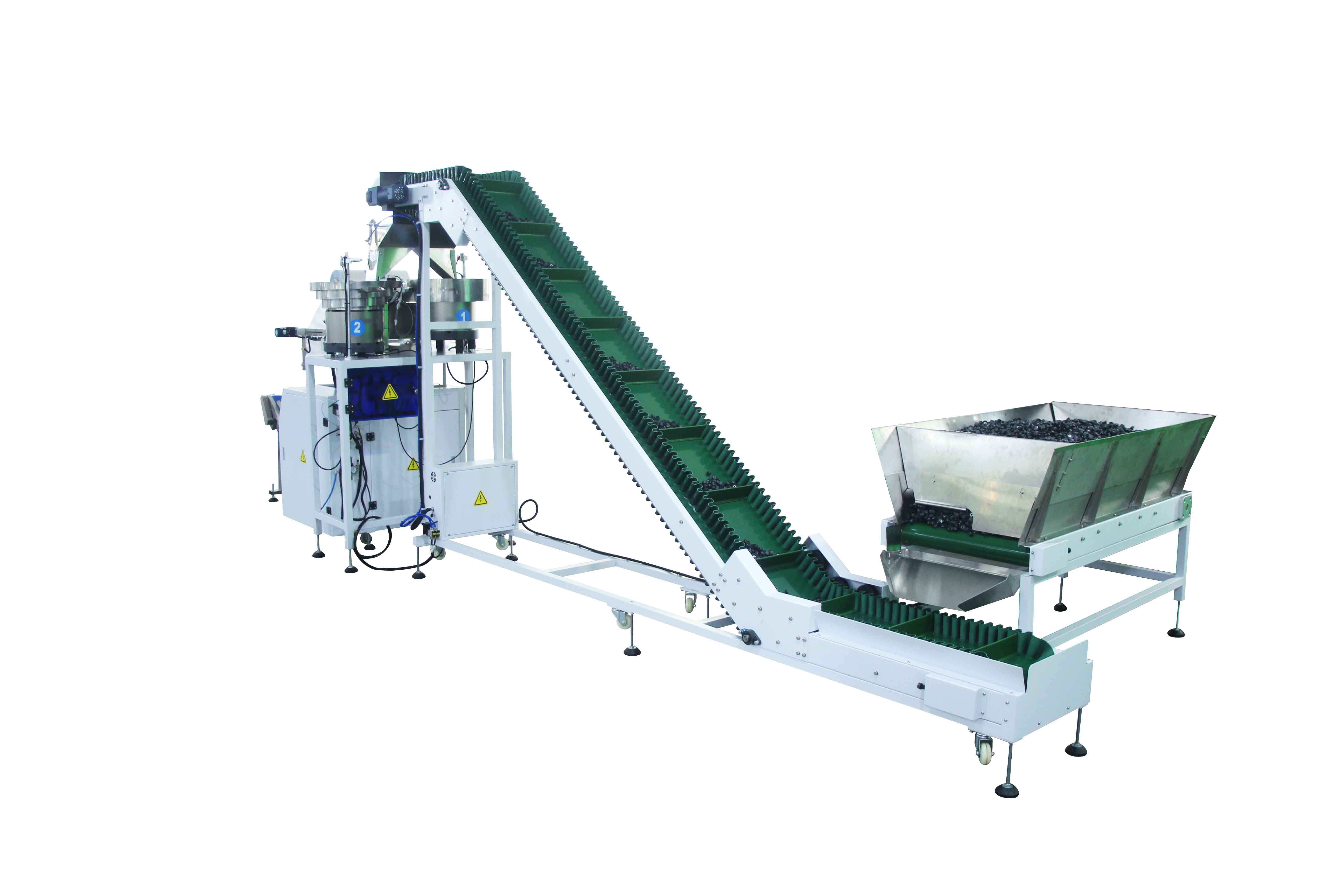

XK-C802Z weighing and complementing packaging machine is used for packaging a large number of products. It is packaged by weighing first and then complementing.

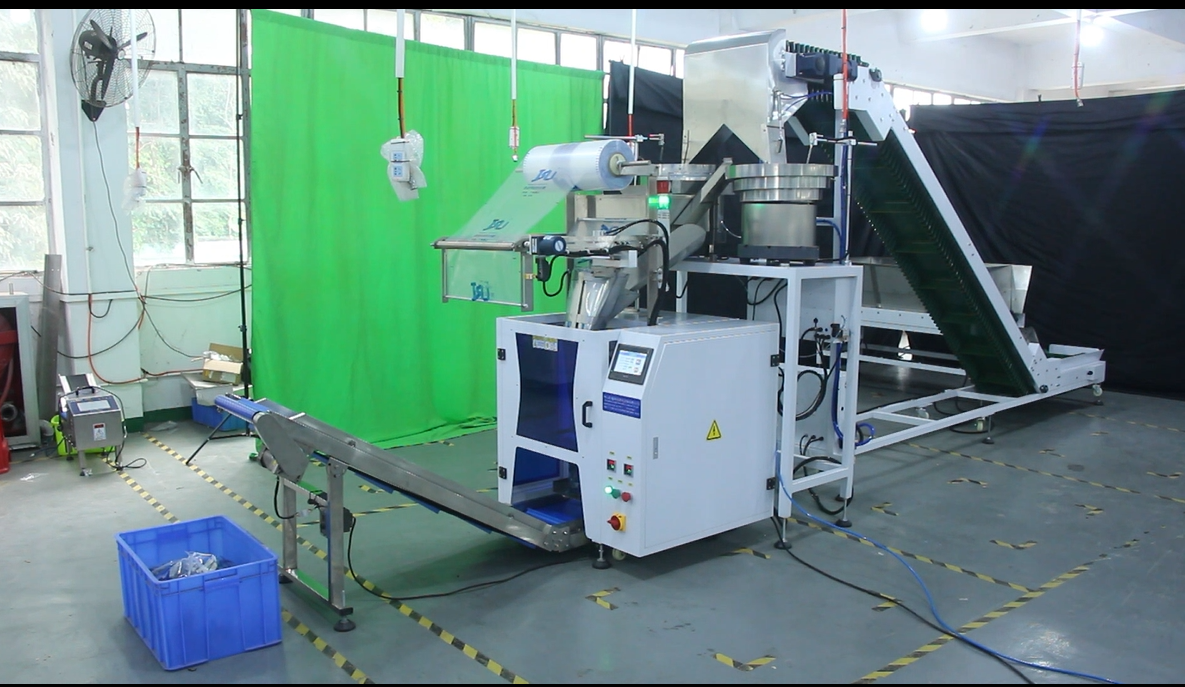

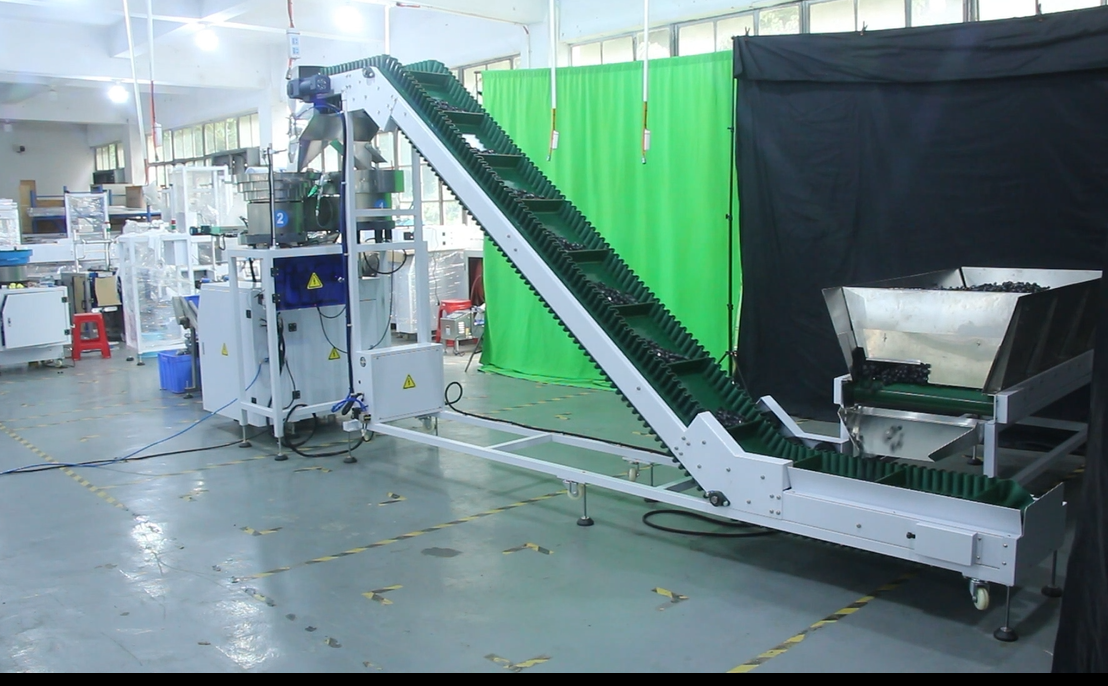

The material storage box horizontally transports the plastic parts to the belt, which then transmits the plastic parts to the vibrating plate. XK-C802Z is measured by means of weighing and counting, and is packaged by means of double-plate thick, precise feeding, weighing first and then counting. We can see that the equipment packaging area is working, automatically filling materials, sealing and cutting, and then pushing the product to the elevator after packaging .Man-machine interface operation, simple and convenient parameter setting, the display screen will display synchronously when the machine is running.After packaging, plastic parts are transported to the storage box through the conveyor belt to prevent the materials from piling up in the packaging area and causing plastic parts clamping.Finally, what we see is the final product. The bag packaging is conventional three-sided sealing. The bag shape is beautiful, uniform, regular, firm, and the quantity is accurate. Thanks for watching.
-
Surnamegrace ni
-
Company NameZhongshan Xingke Automation Equipment Co., Ltd.
-
E-mailgrace@xingkepacking.com
-
TEL+8613318298542
Best Packing Solution XK-C802Z weighing and complementing packaging machine
Product Introduction
Our XK-C802Z weighing and complementing packaging machine It is packaged by weighing first and then complementing. This machine is used for packaging a large number of products.
XK-C802Z weighing and complementing packaging machine is suitable for automatic mixing or separate packaging of two items, such as screws, nuts, flat washers, spring washers, toys, standard parts, etc. After the vibrating plate is automatically counted, the product is filled into the former for automatic packaging，other items can be mixed and packed manually in the spare space of the equipment.
2. It is suitable for "OPP/CPP/composite film" as sealing material.
XK-C802Z is measured by means of weighing and counting, and is packaged by means of double-plate thick, precise feeding, weighing first and then counting
Our XK-C802Z weighing and complementing Plastic Parts packaging machine Technical features:
1. The vibration plate customized for packaging samples is weighed and packaged by weighing method, with an accuracy of ± 1G.
2. The vibrating plate automatically arranges materials, automatically counts, automatically fills, automatically packs, seals, and counts output.
3. The intelligent temperature control system is adopted, the temperature control is stable, and the temperature can be adjusted according to the needs.
4. The length of the packaging bag is adjustable, the total number of packaging is adjustable, and the set number of times is automatically alarmed.
5. After packaging, the bag shape is uniform, regular, beautiful and firm. It can also be equipped with expansion equipment such as coding machine, check weighing machine, labeling machine and elevator.
6. The protective cover is installed, which is more secure and firm.
Product parameters
| Equipment model | XK-C802Z |
|
Bag size |
width 40-230 within 300 length |
|
Packing speed |
1-20 bags/min |
|
Seal shape |
stripe, back seal/trilateral seal (normally back seal) |
| Voltage power | 220V/50Hz P≈1.5KW |
|
Weight |
about 550KG |
|
Bag sealing shape |
figure cutter tooth type |
| Dimensions | 3500mm/width 1100mm/height 2500mm |
| Packing speed | Weighing supplement |
Product Details
XK-C802Z weighing and complementing Plastic Parts packaging machine
Counting method: Weighing supplement
We provide low-cost ocean logistics services(For option, you may have your own shipping company)，our packaging is export standard wooden box packaging
Our machines have CE certificates and can be exported to countries all over the world
Company Advantages
Have a professional R&D team, each equipment has been discussed and formulated by the R&D team.
Customized design according to customer product process requirements, a variety of models to choose, free sample.
Professional after-sales team, provide good service .
With a professional R&D team, non-standard models can also be customized according to needs.Each equipment is completed and will be shipped after a large number of simulated production tests to ensure the stability.
-
