  • Product Details

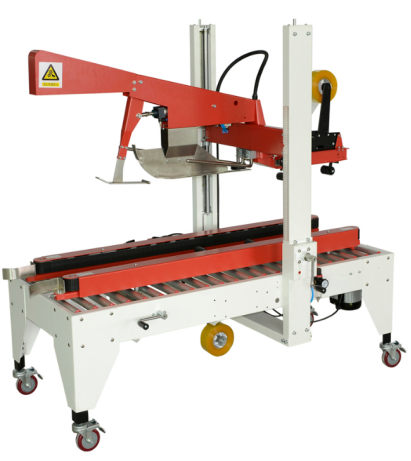

SDW-FC500 Automatic Folding and Sealing Machine

1. Power supply: 220V, 50Hz, 200W

2. Working air pressure: 6kg/cm2

3. Dimensions: L1700mm×W930mm×H1510mm

4. Table height: 600mm (adjustable)

5. Minimum carton size: L200*W120*H120, maximum carton size: L600*W500*H600MM

6. Belt speed: 20 m/min

7. Tape size: 48, 60mm choose one

8. Sealing tape: Kraft paper tape, BOPP tape

9. Belt height: 50MM

10. Machine performance:

Manually adjust height and width when changing specifications

Transmission mode adopts belt drive on both sides

Wiring or stand-alone operation is possible, the cover is automatically folded, and the upper and lower characters are sealed at one time.

11. Electrical configuration:

 Contactor: French "Schneider"

Pneumatic components: Taiwan,China "AirTAC"

 Motor: Taibang
