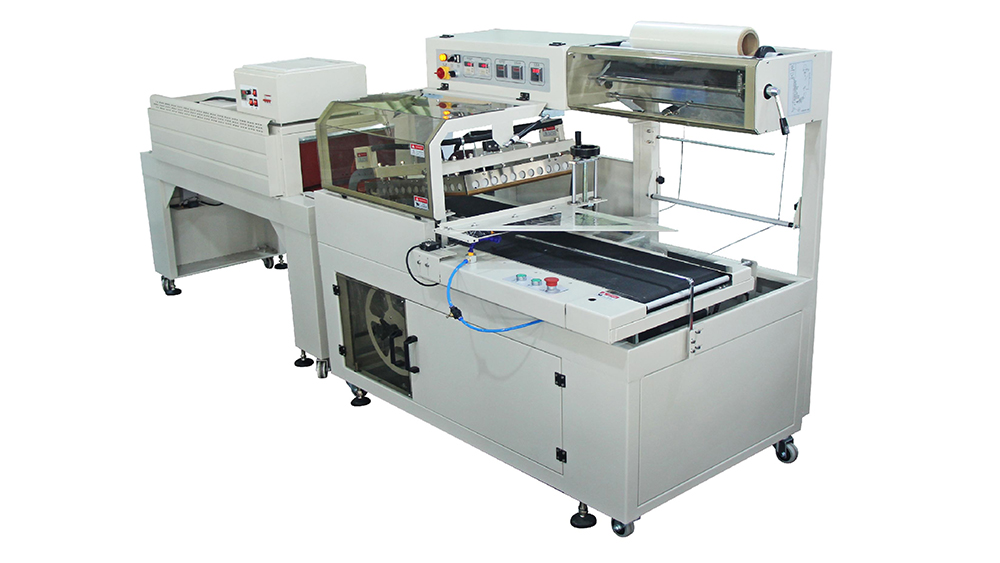

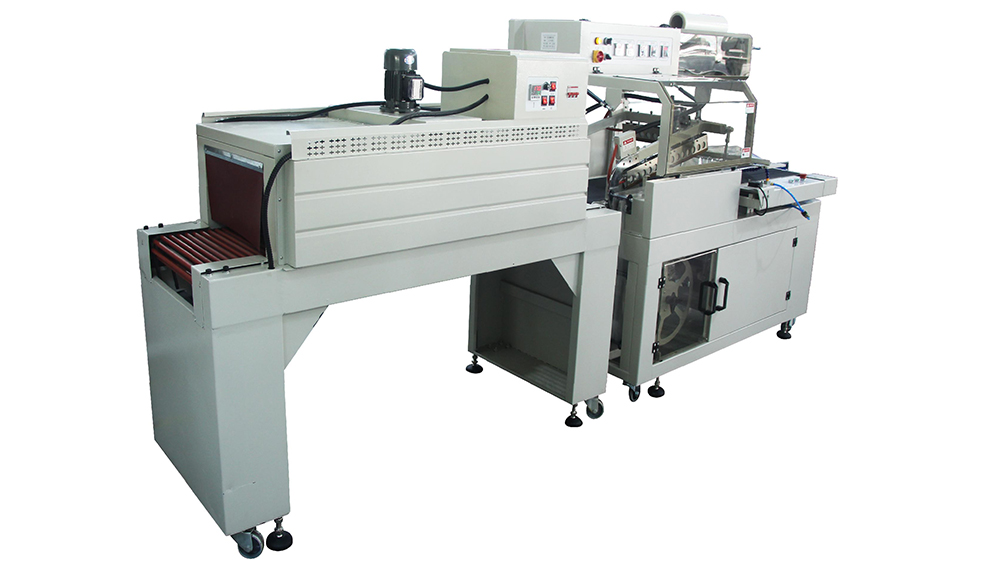

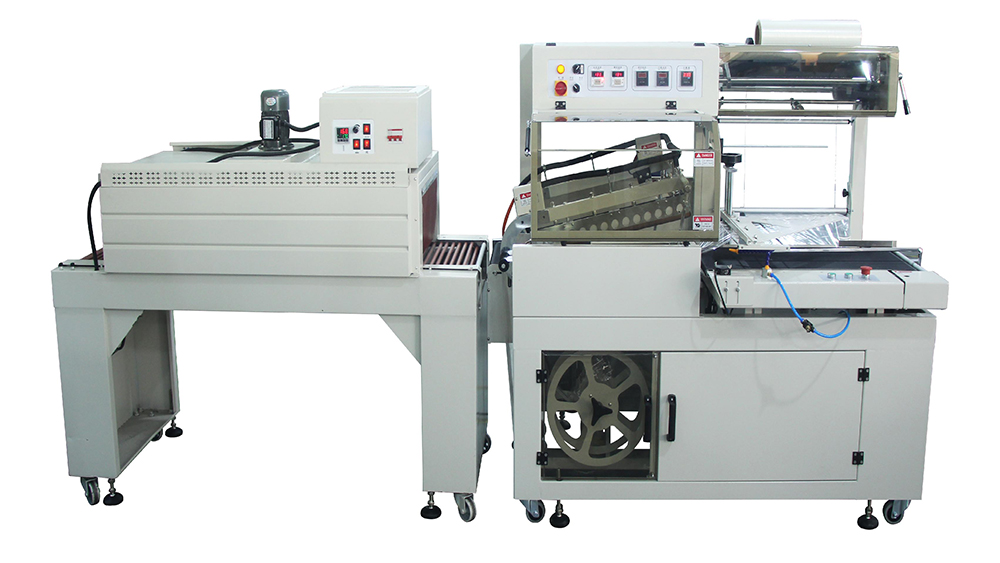

XK-FQL450L(Heat Shrinking Wrapping Photo Frame Toys Carton Box Tube Packing Machine)

Name: XK-FQL450L(Heat Shrinking Wrapping Photo Frame Toys Carton Box Tube Packing Machine)
Uploaded: 2022-03-11T17:59:33+08:00
Duration: 56 s
Description: XK-FQ450L Hardware plastic heat shrinking packaging machine , manual placement , automatically, sealing , shrinking.

XK-FQ450L Hardware plastic heat shrinking packaging machine , manual placement , automatically, sealing , shrinking.

SEND INQUIRY NOW

Product Details

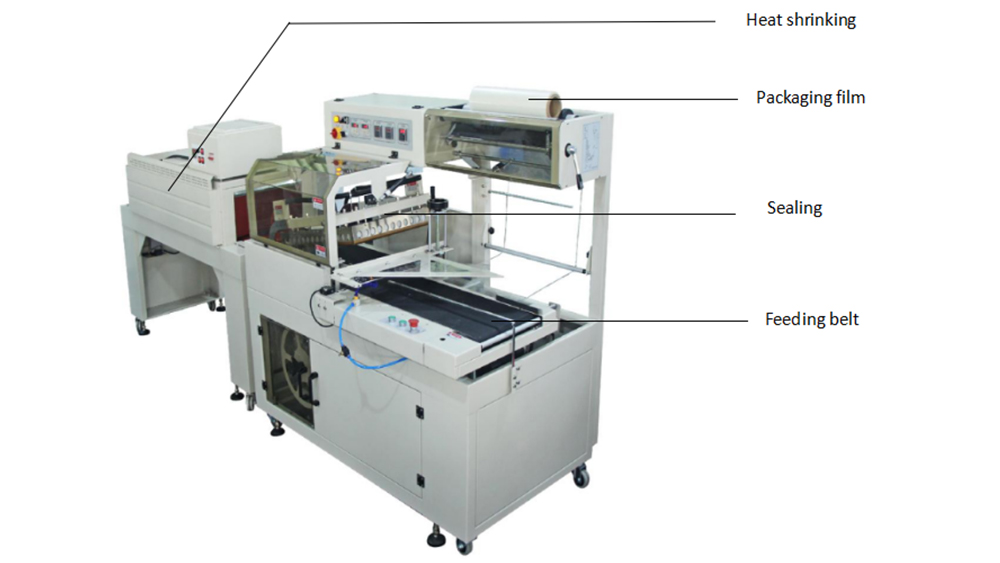

Technical features:

1. Fully automatic feeding, conveying, bagging and sealing are completed at one time, with high work efficiency and simple operation. If you need to change the packaging size, you only need to adjust the height and wide handle.

2. No smoke is generated during sealing, reducing environmental pollution.

3. PLC electric eye control, accurate and durable, and equipped with safety protection devices.

4. The material is sensed by horizontal or vertical double electric eye induction mode, which is connected to the heat shrinking furnace for tightening.

5. The use of electronic governor and double-layer heat insulation device.

6. Keep the indoor constant temperature and ensure that the appearance is not too hot, stainless steel heater.

7. The high-power fan has large air volume and uniform air flow, which makes the shrinking machine heat up quickly and ensures the perfect shrinkage of small products.

8. The conveying chain adopts solid rollers and high temperature resistant silicone tube outside, which will not burn the product and can withstand heavy objects.

Scope of application and features:

1. This product is suitable for packaging shrinkage of food, medicine, chemical industry, electronic products, printed matter, toys, furniture, bathroom lighting and other products. For example, carton, carton, door panel, glass, hardware frame is suitable for PVC, OPP, POF, PP various heat shrinkable film, this model is mainly conventional products or carton packaging conventional POF heat shrinkable.

2. Suitable for PVC, OPP, POF, PP, PE heat shrinkable films.

Product Parameters

Device Model: XK-FQL450L

Induction Method: horizontal/vertical

Bag Size: Width within 500, height within 200 (can be customized)

Packing Speed: 5-60 packs/min

Sealing Shape: Flat mouth heat shrinking

Bag Side Shape: Flat mouth heat shrinking

Voltage Power: 380V/50Hz P≈14KW

Conveying Method: Belt + roller

Dimensions: 3250mm*1000mm* 1480mm(L*W*H)

Weight: About 800KG
