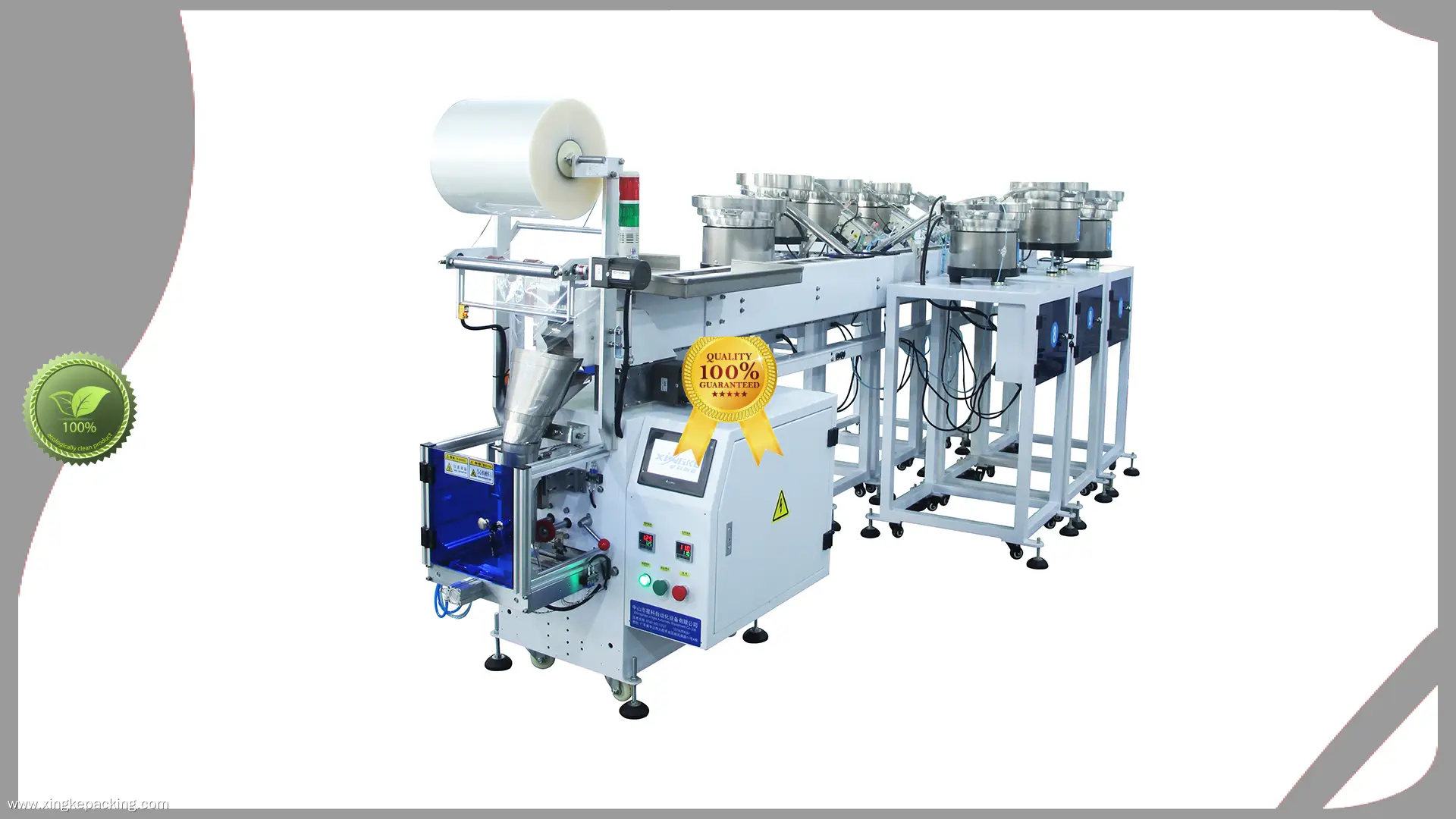

Custom automatic counting and packing machine manufacturers Manufacturer | Xingke

Relying on advanced technology, excellent production capabilities, and perfect service, Xingke takes the lead in the industry now and spreads our Xingke all over the world. Together with our products, our services are also supplied to be the highest-level. automatic counting and packing machine We have been investing a lot in the product R&D, which turns out to be effective that we have developed automatic counting and packing machine. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.automatic counting and packing machine is built to meet national standards using top-of-the-line materials and cutting-edge manufacturing technology. Featuring a sleek design, sturdy construction, and exceptional durability, this product is sure to impress. Whether you're in need of reliability or aesthetic appeal, automatic counting and packing machine is sure to exceed your expectations.

1) Technical characteristics

1. Automatic filling, automatic packing, sealing function, output count.

2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.

3. The length of the bag can be adjusted, the total amount of the package can be adjusted, and the automatic alarm can be reached when the set number of times is reached.

4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.

2)Scope of application and functional features

1. This product is suitable for automatic mixing or individual packaging of the following 7 materials, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc. After automatic counting of the vibrator bowl, the product will be filled into the box for automatic packaging, or other materials can be put into the mixed packaging manually by using the spare space of the equipment.

2. It is suitable for "OPP/CPP/ lamination film" as sealing material.

Product Parameters

Equipment Model: XK-B867T

Counting Method: Optical fiber counting/blocking and putting

Bag Size: Width 40-140 length less than 200 (conventional 140)

Packing Speed: 1-60 bags/min

Sealing Shape: Stripe, back seal/three side seal (usually back seal)

Voltage Power: 220V/50HZ  P≈1.5KW

Air Supply: 0.4-0.8MPA

Bag Mouth Shape: Figure cutter tooth shape

Dimensions: Length 2350mm/ width 1500mm/ height 1550mm

Weight: About 350KG
