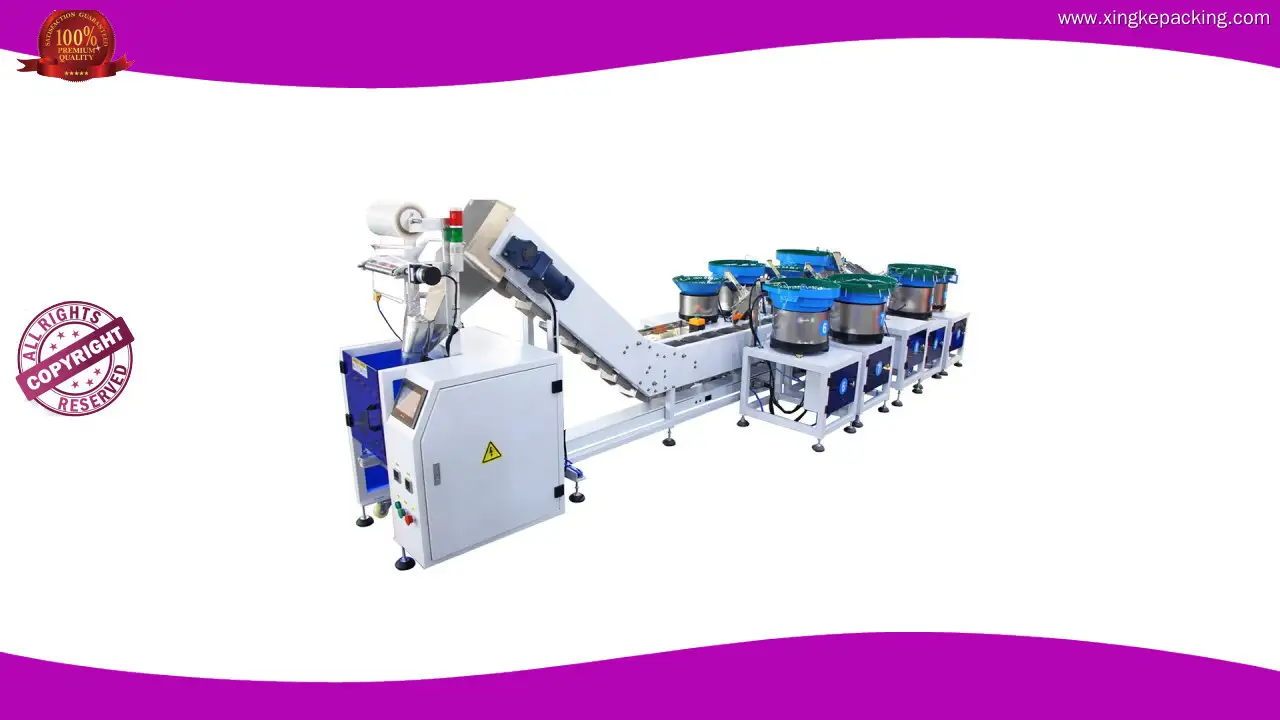

Custom hardware kit packing machine Supply Manufacturer | Xingke

Set up years ago, Xingke is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. hardware kit packing machine We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product hardware kit packing machine or our company.hardware kit packing machine is made of high-quality materials and advanced manufacturing technology in accordance with national standards. It has a compact structure, beautiful appearance, and is durable.

1) Technical characteristics
1.Vibrator bowl automatically arranges materials, automatic counting, automatic filling, automatic packaging, sealing function, and output counting.
2. Adopt intelligent temperature control system, stable temperature control, temperature adjustable according to needs.
3. The length of the packaging bag is adjustable, the total number of packaging is adjustable. Automatic alarm when the set number is reached.
4. After packaging, the bag shape is uniform, regular, beautiful, and firm, and expansion equipment such as coding machine, check weighing, labeling machine, hoist, etc. can also be added.

2) Scope of application and functional characteristics
1. This product is suitable for automatic mixing or individual packaging of less than seven materials, such as screws, nuts, flat washers, spring washers, toys, standard parts, etc. This product uses a chain bucket to drive the material box to rotate, and the vibrator bowl automatically counts materials put the product into the material box, the chain bucket fills the product into the automatic packaging of the forming machine. This product adopts a corner method to reduce the height of the trailer, which is convenient for manual putting, and it can also use the spare space of the equipment to manually put other materials in mixed packaging.
2. Suitable for "OPP/CPP/lamination film" as a sealing material.

Product Parameters

Equipment model: XK-B870Z

Counting method: Fiber counting/blocking and putting

Bag size: Width 40-140 length within 200 (normal 140)

Packing speed:1-60 bags/min

Sealing shape: Stripes, back seal/three-side seal (conventional back seal)

Voltage power: 220V/50Hz  P≈2KW

Air Supply: 0.4-0.8Mpa

Bag mouth shape: Pattern knife tooth type

Dimensions: Length 4200mm/width 2100mm/height 1650mm

Weight: About 800KG
