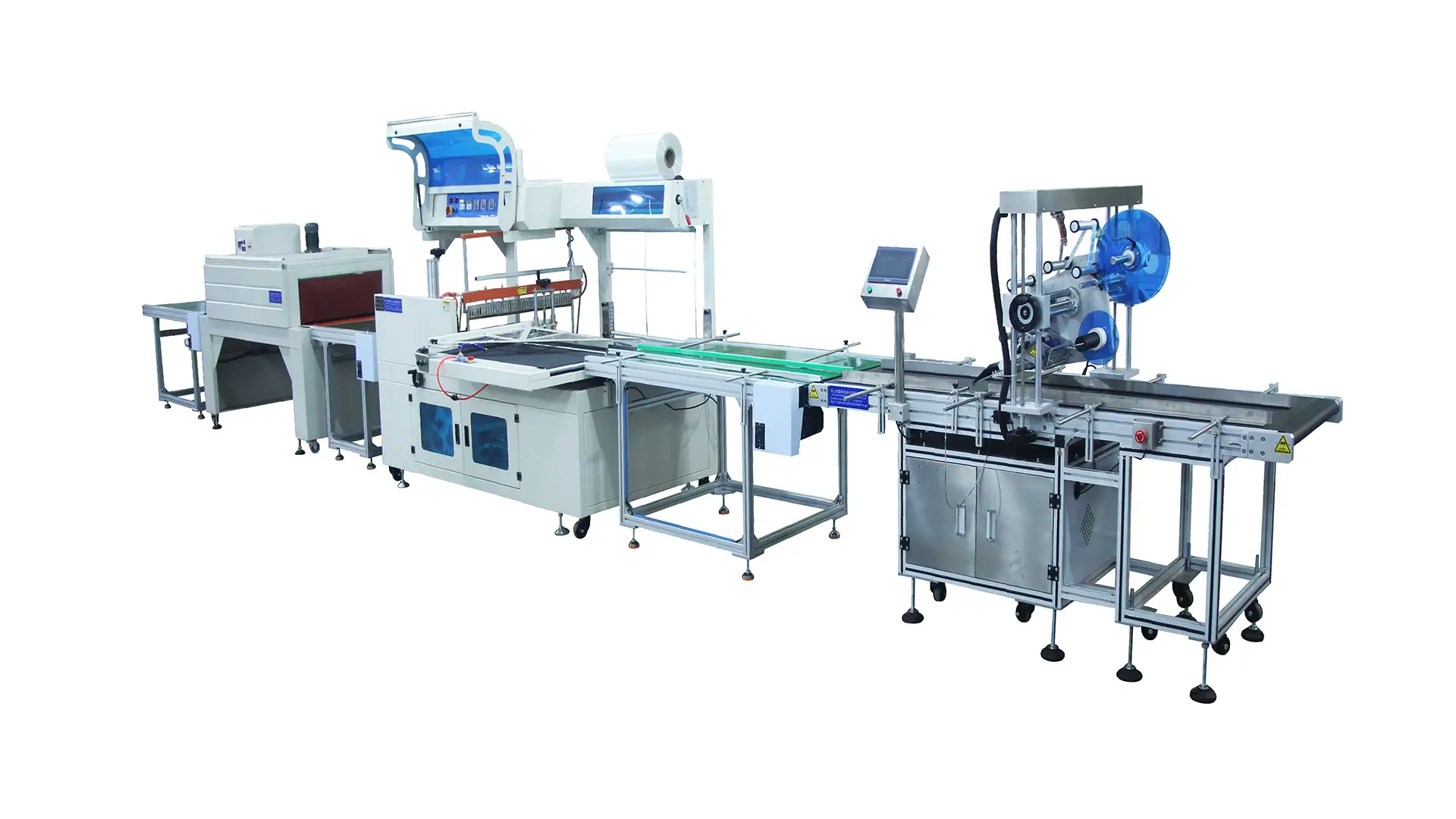

XK-FQ650 (Automatic Labeling Shrink Packaging Production Line)

1) Technical features

1. Fully automatic labeling, conveying, bagging, sealing and shrinking are completed at one time, with high work efficiency and simple operation.

2. If you need to change the packaging size, only need to adjust the height and wide handle to use the same type of products.

3. Automatic labeling, induction labeling, uniform and accurate position.

3. No smoke is generated during sealing, reducing environmental pollution.

4. PLC electric eye control, accurate and durable, and equipped with safety protection devices.

5. Material induction horizontal or vertical double electric eye induction mode.

6. Connect the heat shrink furnace for tightening.

2) Scope of application

1. This product is suitable for packaging shrinkage of food, medicine, chemical, electronic products, printed matter, toys, furniture, bathroom lighting and other products. For example, carton, box, door, glass, photo frame, hardware frame is suitable for OPP, POF, PP various Heat shrinkable film.

2. It is suitable for various heat shrinkable films of OPP/POF/PP/PE.

Product Parameters

Equipment Model: XK-FQ650

Sensing Method: Horizontal/vertical

Bag Size: Width 650, within 300 length (can be customized)

Packing Speed: 5-60 bags/min

Sealing Shape: Upper and lower side sealing

Voltage Power: 380V/50Hz P≈40KW

Weight: About 800KG

Mouth Shape: Flat mouth heat shrink

Dimensions: Length 12200mm/width 2500mm/height 1700mm
