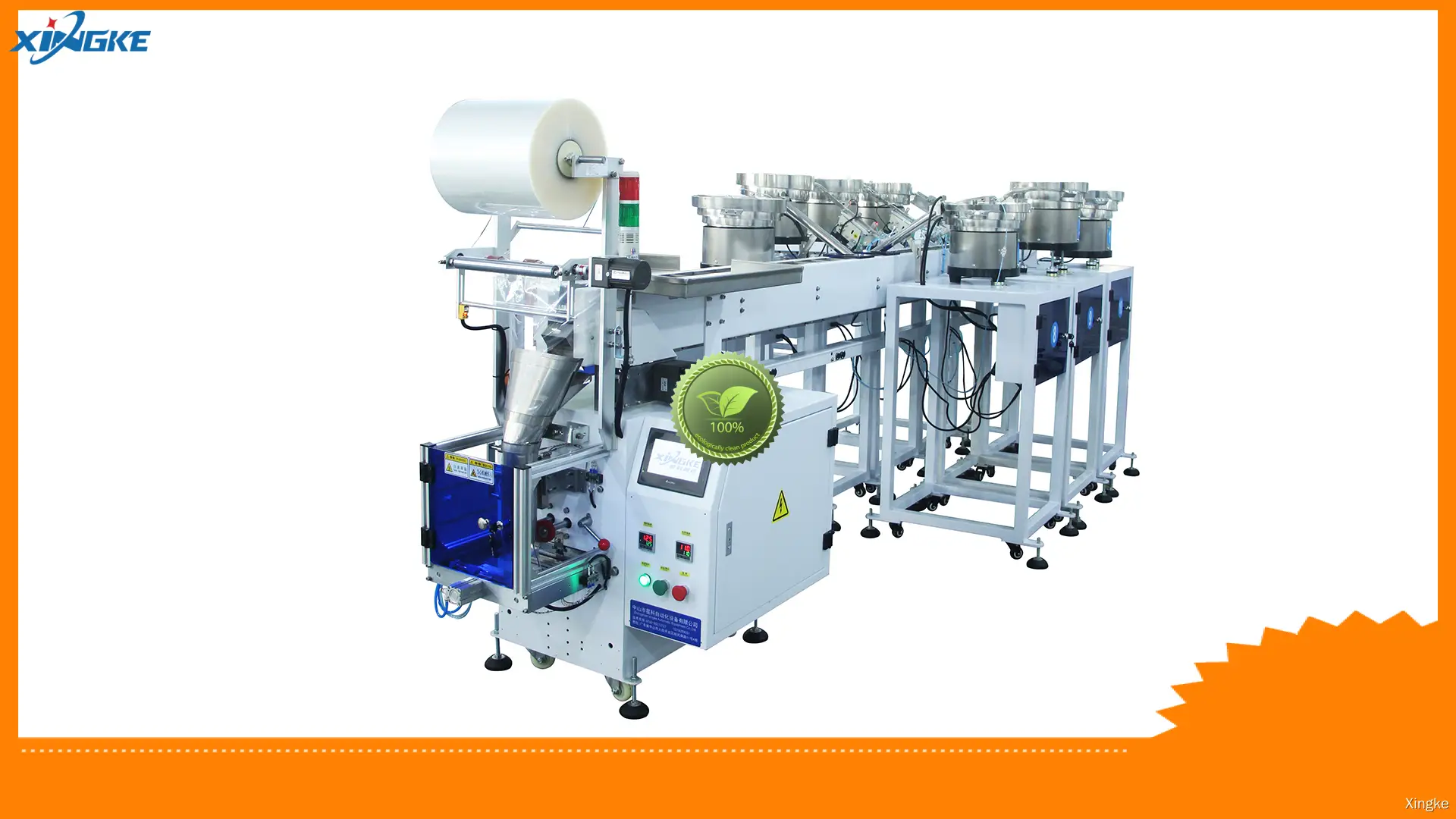

Xingke | Best automatic counting machine factory

Relying on advanced technology, excellent production capabilities, and perfect service, Xingke takes the lead in the industry now and spreads our Xingke all over the world. Together with our products, our services are also supplied to be the highest-level. automatic counting machine We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product automatic counting machine or our company. Standardized production is carried out in strict accordance with the quality control process, and the quality is strictly controlled in every link from product design, research and development, production to finished product delivery to ensure the excellent quality of automatic counting machine.

1) Technical characteristics

1. Automatic filling, automatic packing, sealing function, output count.

2. Adopt intelligent temperature control system, stable temperature control, temperature can be adjusted according to needs.

3. The length of the bag can be adjusted, the total amount of the package can be adjusted, and the automatic alarm can be reached when the set number of times is reached.

4. After packing, the bag is uniform, neat, beautiful and firm. It can also be equipped with coding machine, check weighing, labeling machine, hoist and other expansion equipment.

2)Scope of application and functional features

1. This product is suitable for automatic mixing or individual packaging of the following 7 materials, such as screws, nuts, plain washers, spring washers, toys, standard parts, etc. After automatic counting of the vibrator bowl, the product will be filled into the box for automatic packaging, or other materials can be put into the mixed packaging manually by using the spare space of the equipment.

2. It is suitable for "OPP/CPP/ lamination film" as sealing material.

Product Parameters

Equipment Model: XK-B867T

Counting Method: Optical fiber counting/blocking and putting

Bag Size: Width 40-140 length less than 200 (conventional 140)

Packing Speed: 1-60 bags/min

Sealing Shape: Stripe, back seal/three side seal (usually back seal)

Voltage Power: 220V/50HZ  P≈1.5KW

Air Supply: 0.4-0.8MPA

Bag Mouth Shape: Figure cutter tooth shape

Dimensions: Length 2350mm/ width 1500mm/ height 1550mm

Weight: About 350KG
