Xingke - Professional Automatic Packing Machine Manufacturer with 15+ years production experience.

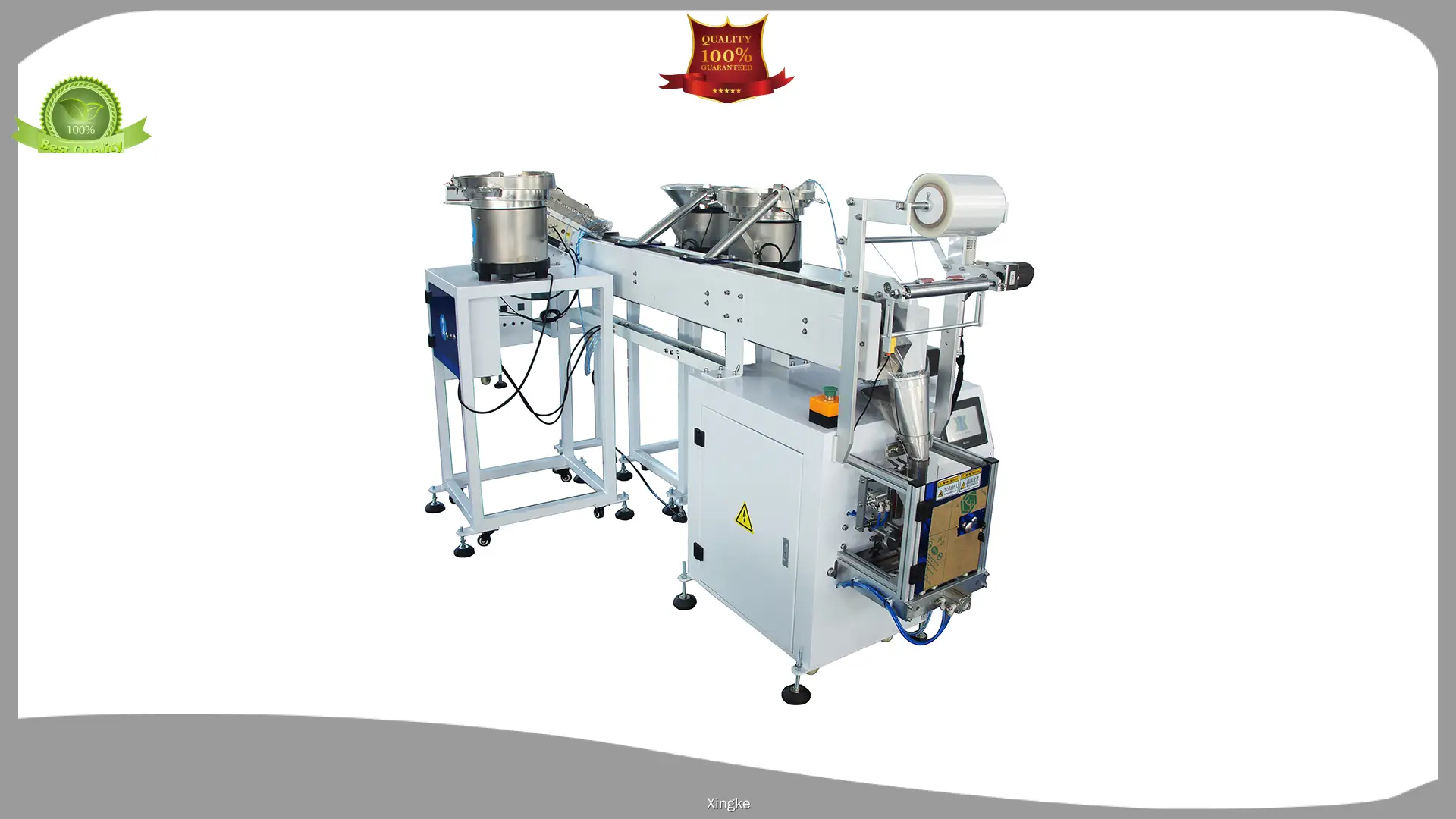

XK-B863T (3 Kinds of Material Mixing Automatic Counting Bag Making and Filling Chain Bucket Packaging Machine).
1) Technical characteristics
1.Vibrator bowl automatically arranges materials, automatic counting, automatic filling, automatic packaging, sealing function, and output counting.
2. Adopt intelligent temperature control system, stable temperature control, temperature adjustable according to needs.
3. The length of the packaging bag is adjustable, the total number of packaging is adjustable, automatic alarm when the set number is reached.
4. After packaging, the bag shape is uniform, regular, beautiful, and firm. And expansion equipment such as coding machine, check weighing, labeling machine, hoist, etc. can also be added.
2) Scope of application and functional characteristics
1. This product is suitable for the separate packaging of automatic mixed goods of 3 or less materials, such as screws, nuts, flat washers, spring washers, toys, standard parts, etc. This product uses a chain bucket to drive the material box to rotate, and the vibrator bowl automatically counts materials put the product in the material box, the chain bucket will fill the product into the automatic packaging of the forming machine, or use the free space of the equipment to manually put other materials in mixed packaging.
2. Suitable for "OPP/CPP/lamination film" as a sealing material.
After years of solid and rapid development, Xingke has grown into one of the most professional and influential enterprises in China. automatic counting machine If you are interested in our new product automatic counting machine and others, welcome you to contact us.automatic counting machine It has the characteristics of stable operation, simple operation, convenient maintenance, high efficiency and energy saving, and has been widely used in many industries and fields such as food, beverage, medicine, daily necessities, tobacco and wine, hardware, chemical industry, and electronic machinery.
Equipment model: XK-B863T
Counting method: Fiber counting/blocking and putting
Bag size: Width 40-140 length within 200 (normal 140)
Packing speed: 1-60 bags/min
Sealing shape: Stripes, back seal/three-side seal (conventional back seal)
Voltage power: 220V/50Hz P≈1.5KW
Air supply: 0.4-0.8Mpa
Bag mouth shape: Pattern knife tooth type
Dimensions: Length 2350mm/width 1500mm/height 1550mm
Weight: About 350KG
